CF25161D0R0-05-NH _ FFC, FPC (Flat Flexible) Connector Assemblies_FFC, FPC (Flat Flexible) Connectors_Connectors, Interconnects

Part Number	CF25161D0R0-05-NH
Manufacturer	CviLux
Other Part Numbers	2987-CF25161D0R0-05-NHTR-ND 2987-CF25161D0R0-05-NHCT-ND 2987-CF25161D0R0-05-NHDKR-ND 2987-CF25161D0R0-05-NHTR 2987-CF25161D0R0-05-NHCT 2987-CF25161D0R0-05-NHDKR

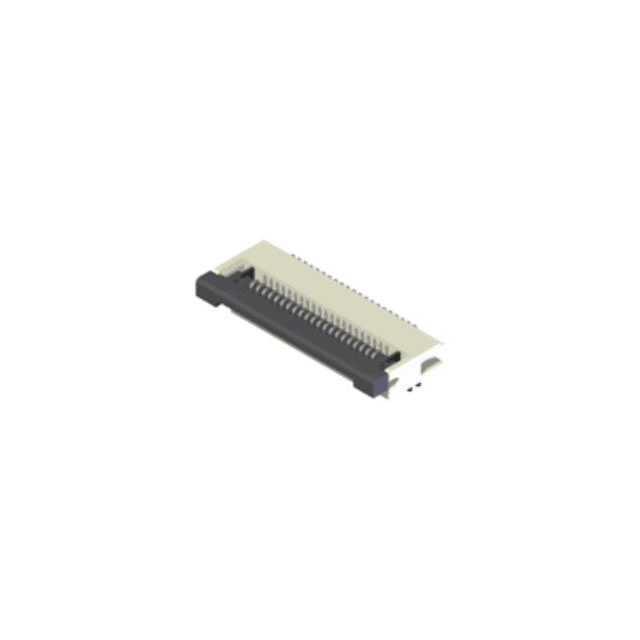

Description	CONN FFC BOTTOM 16POS 0.5MM R/A
Detailed Description	16 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects FFC, FPC (Flat Flexible) Connectors FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer		CviLux
Series		CF25
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Features		Solder Retention, Zero Insertion Force (ZIF)
Contact Finish		Tin
Voltage Rating		50V
Current Rating (Amps)		0.5A
Mounting Type		Surface Mount, Right Angle
Number of Positions		16
Pitch		0.020" (0.50mm)
Operating Temperature		-40°C ~ 105°C
Termination		Solder
Height Above Board		0.087" (2.20mm)
Locking Feature		Flip Lock
Material Flammability Rating		UL94 V-0
Actuator Material		Polyamide (PA6T), Nylon 6T, Glass Filled, Halogen Free
Contact Material		Phosphor Bronze
FFC, FCB Thickness		0.30mm
Housing Material		Polyamide (PA6T), Nylon 6T, Glass Filled, Halogen Free
Cable End Type		Straight
Housing Color		Natural
Actuator Color		Black
Flat Flex Type		FFC, FPC
Connector/Contact Type		Contacts, Bottom

RESOURCE TYPE		LINK
Datasheets		CF25161D0R0-05-NH

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
