CES-102-02-T-S-RA _ Headers, Receptacles, Female Sockets_Rectangular Connectors_Connectors, Interconnects

Part Number	CES-102-02-T-S-RA
Manufacturer	Samtec, Inc.
Other Part Numbers	612-CES-102-02-T-S-RA-ND 612-CES-102-02-T-S-RA CES-102-02-T-S-RA-ND

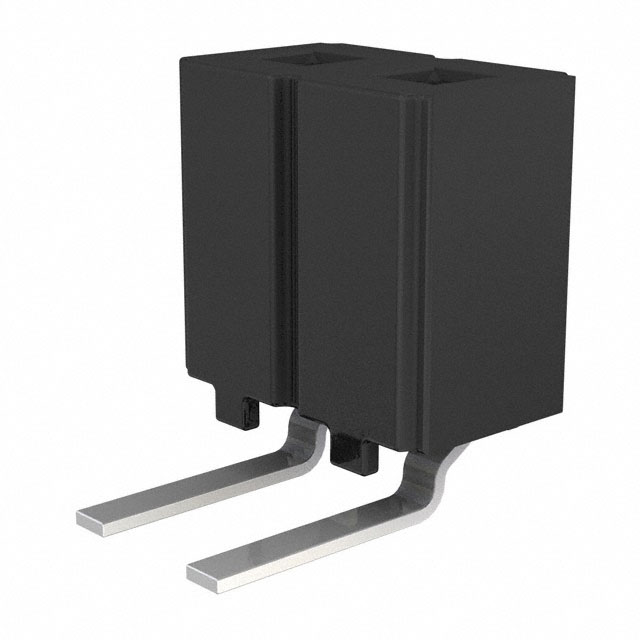

Description	CONN RCPT 2POS 0.1 TIN PCB R/A
Detailed Description	2 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Tin
Manufacturer Standard Lead Time	5 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Receptacles, Female Sockets
Manufacturer		Samtec, Inc.
Series		CES
Packaging		Bulk
Part Status		Active
Connector Type		Receptacle
Mounting Type		Through Hole, Right Angle
Number of Positions		2
Style		Board to Board
Operating Temperature		-55°C ~ 105°C
Contact Type		Female Socket
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Phosphor Bronze
Insulation Color		Black
Pitch - Mating		0.100" (2.54mm)
Contact Finish - Mating		Tin
Contact Finish - Post		Tin
Contact Shape		Square
Contact Length - Post		0.120" (3.05mm)
Insulation Height		0.120" (3.05mm)
Insulation Material		Polybutylene Terephthalate (PBT)
Number of Rows		1

RESOURCE TYPE		LINK
Datasheets		CES-102-02-T-S-RA

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
