CENB1050A0903N01 _ AC DC Desktop, Wall Power Adapters_Power Supplies

Part Number	CENB1050A0903N01
Manufacturer	SL POWER / Advanced Energy
Other Part Numbers	CENB1050A0903N01-ND

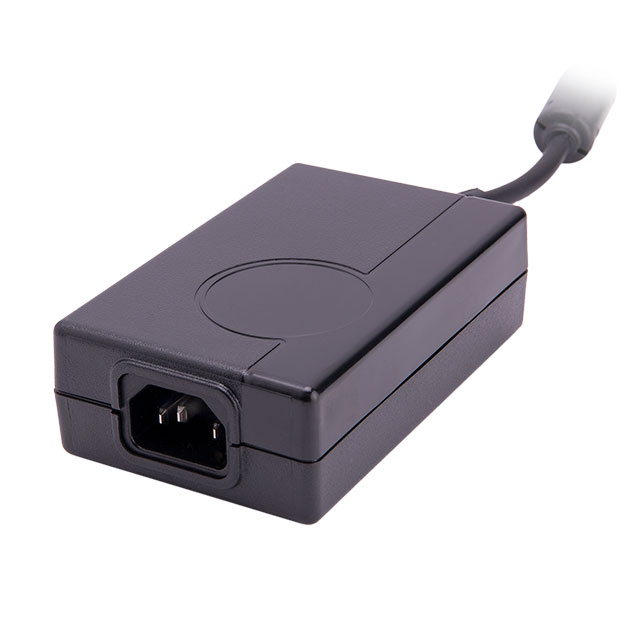

Description	AC/DC DESKTOP ADAPTER 9V 45W
Detailed Description	9V 45 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
Datasheet	Datasheet

Category		Power Supplies - External/Internal (Off-Board) AC DC Desktop, Wall Power Adapters
Manufacturer		SL POWER / Advanced Energy
Series		CENB1050 (50W)
Packaging		Bulk
Part Status		Obsolete
Size / Dimension		4.25" L x 2.67" W x 1.28" H (108.0mm x 67.7mm x 32.5mm)
Voltage - Output		9V
Polarization		Positive Center
Output Connector		Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Voltage - Input		100 ~ 240 VAC
Cord Length		47.2" (1.20m)
Operating Temperature		0°C ~ 40°C
Applications		ITE (Commercial)
Input Type		Cord (Sold Separately)
Approval Agency		CE, cULus
Form		Desktop (Class II)
Efficiency		Level V
Current - Output (Max)		5A
Input Connector		IEC 320-C8
Region Utilized		International
No Load Power Consumption		300mW (Max)
Power (Watts)		45 W

RESOURCE TYPE		LINK
Datasheets		Connector Options
Datasheets		CENB Series RoHS Declaration

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.40.9510
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		RoHS Compliant

This product is no longer manufactured.
