CEER117-AX05-15-007

CEER117-AX05-15-007

Part Number	CEER117-AX05-15-007
Manufacturer	Sumida Corporation
Other Part Numbers	308-CEER117-AX05-15-007TR-ND 308-CEER117-AX05-15-007CT-ND 308-CEER117-AX05-15-007DKR-ND 308-CEER117-AX05-15-007CT 308-CEER117-AX05-15-007TR 308-CEER117-AX05-15-007DKR

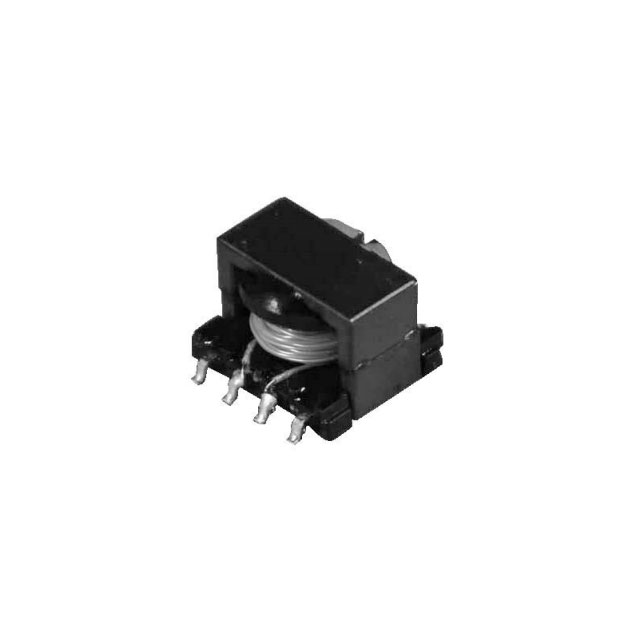

Description	XFMR FLYBACK DC/DC CONV 7.2UH SM
Detailed Description	Flyback Converters For For DC/DC Converters SMPS Transformer 2500Vrms Isolation 400kHz Surface Mount
Datasheet	Datasheet

Product Attributes

Category		Transformers Switching Converter, SMPS Transformers
Manufacturer		Sumida Corporation
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Size / Dimension		0.449" L x 0.390" W (11.40mm x 9.90mm)
Mounting Type		Surface Mount
Frequency		400kHz
Type		For DC/DC Converters
Operating Temperature		-40°C ~ 125°C
Applications		Flyback Converters
Voltage - Isolation		2500Vrms
Intended Chipset		ACPL-32JT, BM60051FV, BM60052AFV, BM60054AFV, BM60055FV, BM60056FV
Voltage - Primary		12V
Voltage - Auxiliary		5V @ 50mA
Footprint		0.508" L x 0.449" W (12.90mm x 11.40mm)
Chipset Manufacturer		Broadcom, ROHM
Height - Seated (Max)		0.331" (8.40mm)
Inductance @ Frequency		7.2µH @ 100kHz, 13.8µH @ 100kHz, 120µH @ 100kHz
