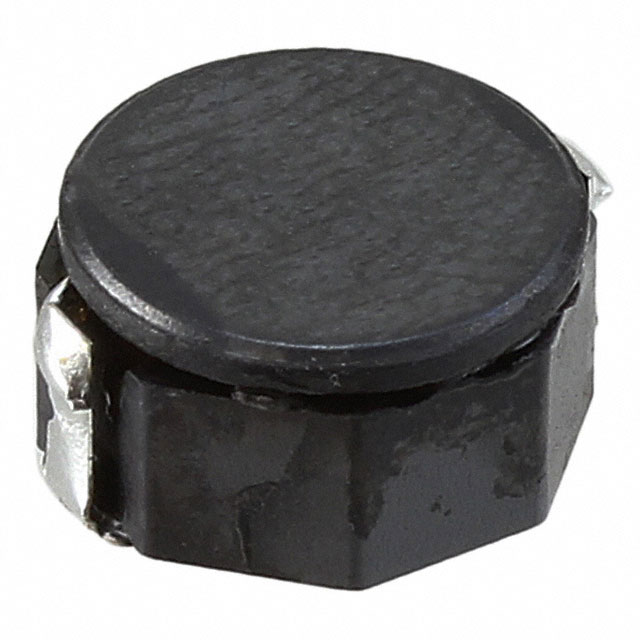

CDRH8D43HPNP-6R8NC

Part Number
CDRH8D43HPNP-6R8NC
Manufacturer Sumida Corporation
Other Part Numbers
CDRH8D43HPNP-6R8NC-ND
Description FIXED IND 6.8UH 3.3A 36 MOHM SMD
Detailed Description 6.8 µH Shielded Inductor 3.3 A 36mOhm Max Nonstandard
Manufacturer Standard Lead Time 24 weeks

Product Attributes

Category
Manufacturer Sumida Corporation
Series
CDRH8D43/HP
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±30%
Package / Case Nonstandard
Size / Dimension 0.315" L x 0.315" W (8.00mm x 8.00mm)
Mounting Type Surface Mount
Shielding Shielded
Operating Temperature -40°C ~ 100°C
DC Resistance (DCR) 36mOhm Max
Current - Saturation (Isat) 5.6A
Material - Core Ferrite
Inductance Frequency - Test 100 kHz
Height - Seated (Max) 0.185" (4.70mm)
Inductance 6.8 µH
Current Rating (Amps) 3.3 A

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status ROHS3 Compliant
