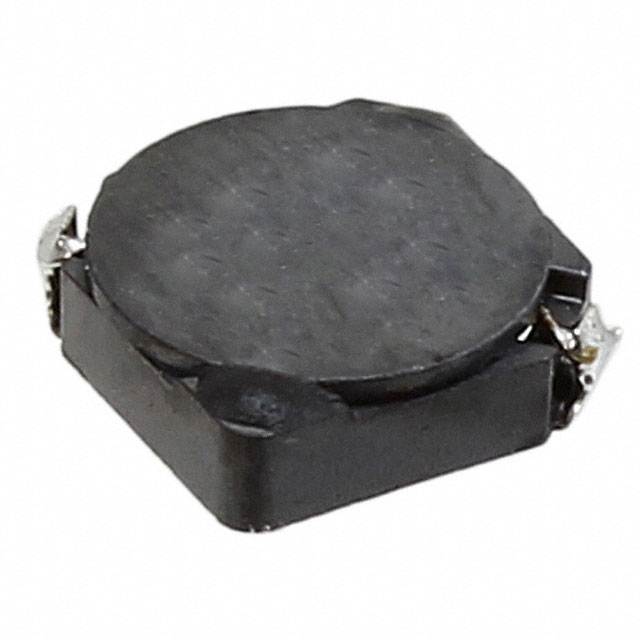

CDRH5D16NP-2R2NC

Part Number
CDRH5D16NP-2R2NC
Manufacturer Sumida Corporation
Other Part Numbers
CDRH5D16NP-2R2NC-ND
Description FIXED IND 2.2UH 2.9A 35.9MOHM SM
Detailed Description 2.2 µH Shielded Inductor 2.9 A 35.9mOhm Max Nonstandard
Manufacturer Standard Lead Time 40 weeks

Product Attributes

Category
Manufacturer Sumida Corporation
Series
CDRH5D16
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±25%
Package / Case Nonstandard
Size / Dimension 0.220" L x 0.220" W (5.60mm x 5.60mm)
Mounting Type Surface Mount
Shielding Shielded
Operating Temperature -40°C ~ 105°C
DC Resistance (DCR) 35.9mOhm Max
Current - Saturation (Isat) 3A
Material - Core Ferrite
Inductance Frequency - Test 100 kHz
Height - Seated (Max) 0.071" (1.80mm)
Inductance 2.2 µH
Current Rating (Amps) 2.9 A

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status ROHS3 Compliant
