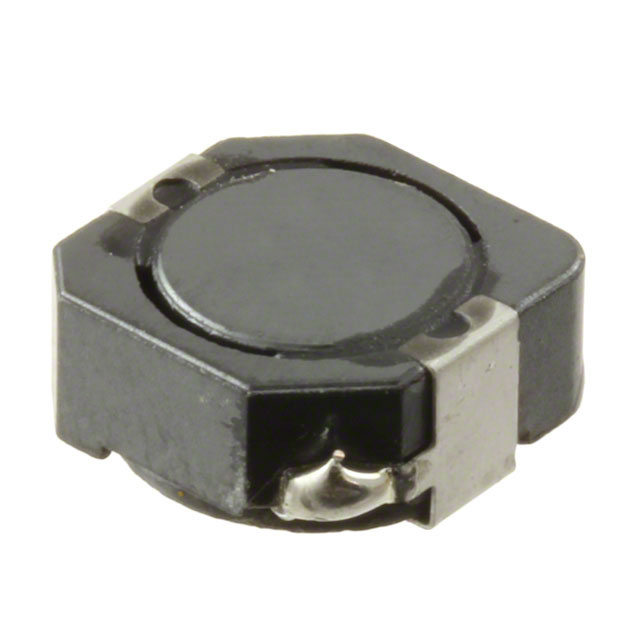

CDRH105RNP-220NC

CDRH105RNP-220NC

Part Number	CDRH105RNP-220NC
Manufacturer	Sumida Corporation
Other Part Numbers	308-2173-2-ND 308-2173-1-ND 308-2173-6-ND CDRH105RNP-220N CDRH105RNP-220NC-ND Q5396740HLG T1379590 308-2173-6 Q5396740ASG 308-2173-2 CDRH105RNP-220N-ND 308-2173-1
Description	FIXED IND 22UH 2.9A 61 MOHM SMD
Detailed Description	22 µH Shielded Inductor 2.9 A 61mOhm Max Nonstandard
Manufacturer Standard Lead Time	27 weeks
Datasheet	Datasheet

Product Attributes

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Sumida Corporation
Series		CDRH105R
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±30%
Package / Case		Nonstandard
Size / Dimension		0.402" L x 0.394" W (10.20mm x 10.00mm)
Mounting Type		Surface Mount
Shielding		Shielded
Operating Temperature		-40°C ~ 100°C
DC Resistance (DCR)		61mOhm Max
Current - Saturation (Isat)		2.95A
Material - Core		Ferrite
Inductance Frequency - Test		100 kHz
Height - Seated (Max)		0.201" (5.10mm)
Inductance		22 µH
Current Rating (Amps)		2.9 A

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CDRH105RNP-220NC
Datasheets		RoHS Cert

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 1577

Can ship immediately.
