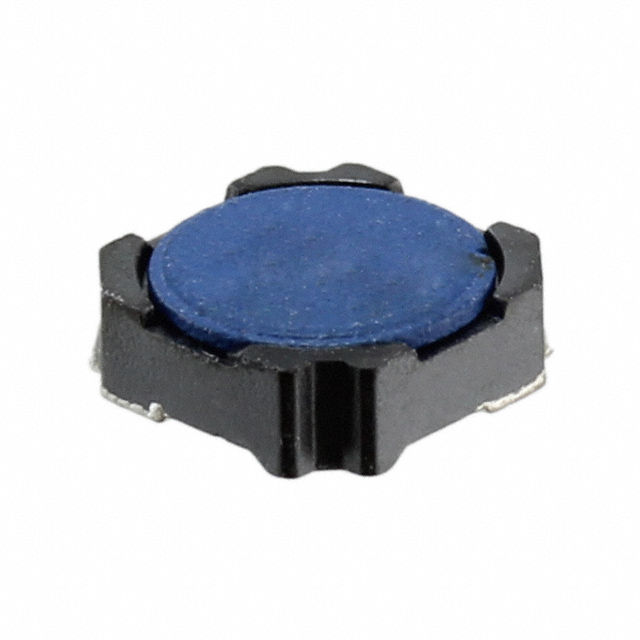

CDR6D23MNNP-3R3NC

Part Number
CDR6D23MNNP-3R3NC
Manufacturer Sumida Corporation
Other Part Numbers
CDR6D23MNNP-3R3NC-ND
Description FIXED IND 3.3UH 2.25A 46.3 MOHM
Detailed Description 3.3 µH Shielded Inductor 2.25 A 46.3mOhm Max Nonstandard
Manufacturer Standard Lead Time 24 weeks

Product Attributes

Category
Manufacturer Sumida Corporation
Series
CDR6D23MN
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±25%
Package / Case Nonstandard
Size / Dimension 0.256" L x 0.256" W (6.50mm x 6.50mm)
Mounting Type Surface Mount
Shielding Shielded
Operating Temperature -40°C ~ 105°C
DC Resistance (DCR) 46.3mOhm Max
Current - Saturation (Isat) 2.95A
Material - Core Ferrite
Inductance Frequency - Test 100 kHz
Height - Seated (Max) 0.098" (2.50mm)
Inductance 3.3 µH
Current Rating (Amps) 2.25 A

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status ROHS3 Compliant
