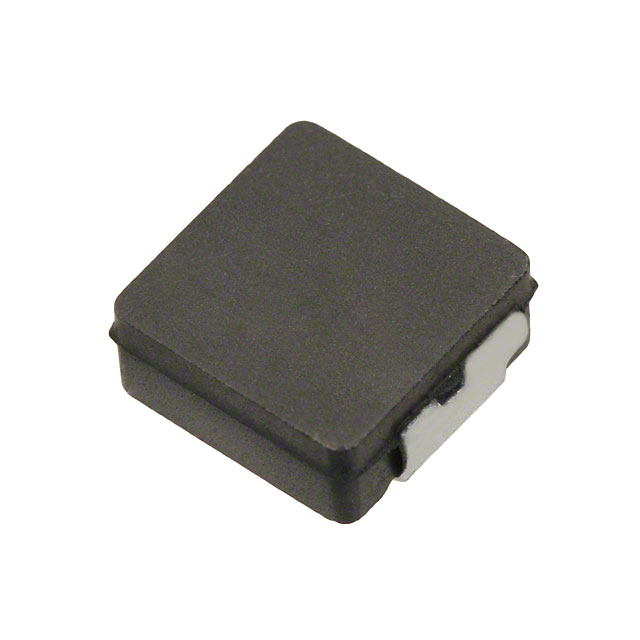

CDMC6D28NP-2R2MC

CDMC6D28NP-2R2MC

Part Number	CDMC6D28NP-2R2MC
Manufacturer	Sumida Corporation
Other Part Numbers	308-1569-2-ND 308-1569-1-ND 308-1569-6-ND 308-1569-6 CDMC6D28NP2R2MC 308-1569-2 308-1569-1
Description	FIXED IND 2.2UH 6A 19.3 MOHM SMD
Detailed Description	2.2 µH Shielded Inductor 6 A 19.3mOhm Max Nonstandard
Manufacturer Standard Lead Time	34 weeks
Datasheet	Datasheet

Product Attributes

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Sumida Corporation
Series		CDMC6D28
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Tolerance		±20%
Package / Case		Nonstandard
Size / Dimension		0.285" L x 0.256" W (7.25mm x 6.50mm)
Mounting Type		Surface Mount
Shielding		Shielded
Operating Temperature		-40°C ~ 125°C
DC Resistance (DCR)		19.3mOhm Max
Current - Saturation (Isat)		6A
Material - Core		Metal Composite
Inductance Frequency - Test		1 MHz
Height - Seated (Max)		0.118" (3.00mm)
Inductance		2.2 µH
Current Rating (Amps)		6 A

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CDMC6D28NP-2R2MC
Datasheets		RoHS Cert

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		Vendor Undefined
RoHS Status		ROHS3 Compliant

In Stock: 11143

Can ship immediately.
