CDFV13W3113L412 _ D-Sub Connector Assemblies_D-Sub, D-Shaped Connectors_Connectors, Interconnects

Part Number	CDFV13W3113L412
Manufacturer	NorComp
Other Part Numbers	37-CDFV13W3113L412-ND 37-CDFV13W3113L412
Description	CONN D-SUB PLUG 13P PNL MNT SLDR

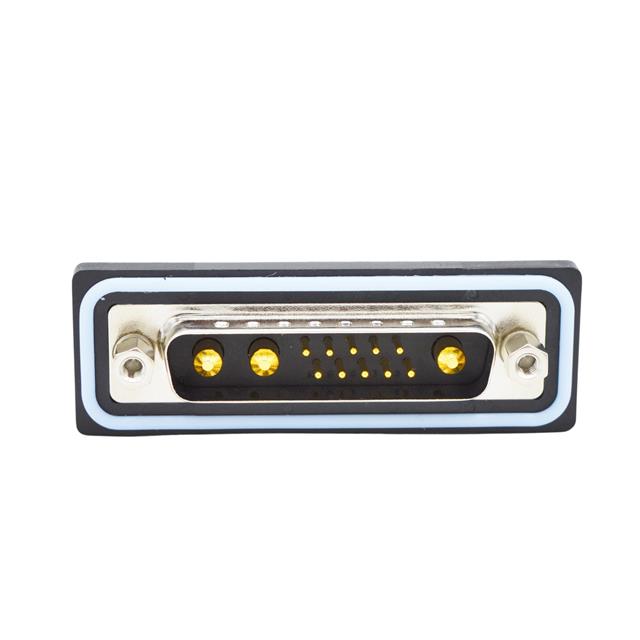

Detailed Description	13 (10 + 3 Power) Position D-Sub, Combo Plug, Male Pins Connector
Manufacturer Standard Lead Time	24 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects D-Sub, D-Shaped Connectors D-Sub Connector Assemblies
Manufacturer		NorComp
Series		NANOOK
Packaging		Tray
Part Status		Active
Features		Grounding Indents
Connector Type		Plug, Male Pins
Contact Finish		Gold
Mounting Type		Panel Mount, Through Hole
Number of Positions		13 (10 + 3 Power)
Number of Rows		2
Operating Temperature		-25°C ~ 85°C
Contact Type		Signal and Power
Flange Feature		Mating Side, Female Screwlock (4-40)
Termination		Solder
Ingress Protection		IP67 - Dust Tight, Waterproof
Connector Style		D-Sub, Combo
Contact Finish Thickness		30.0µin (0.76µm)
Material Flammability Rating		UL94 V-0
Dielectric Material		Polybutylene Terephthalate (PBT)
Shell Material, Finish		Steel, Nickel Plated
Contact Material		Brass
Shell Size, Connector Layout		3 (DB, B) - 13C3, 13W3
Contact Form		Machined

RESOURCE TYPE		LINK
Datasheets		CDFV13W3113L412

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
