CDFS9W4103L412 _ D-Sub Connector Assemblies_D-Sub, D-Shaped Connectors_Connectors, Interconnects

Part Number	CDFS9W4103L412
Manufacturer	NorComp
Other Part Numbers	37-CDFS9W4103L412-ND 37-CDFS9W4103L412

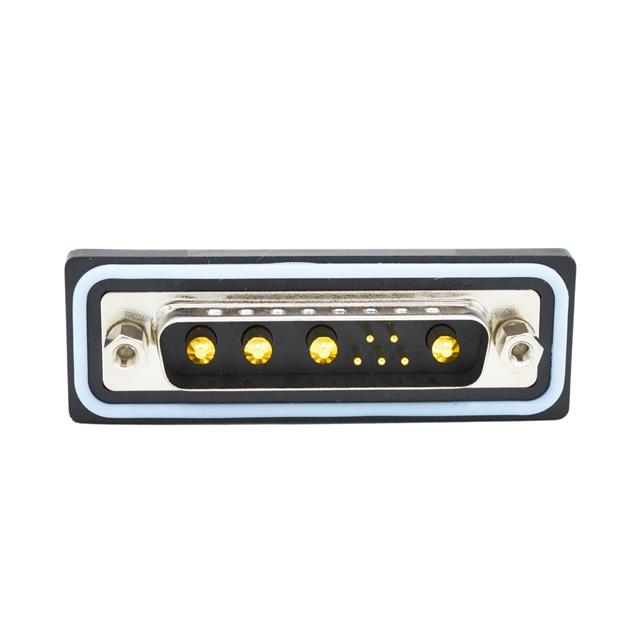

Description	CONN D-SUB PLUG 9POS PNL MNT
Detailed Description	9 (5 + 4 Power) Position D-Sub, Combo Plug, Male Pins Connector
Manufacturer Standard Lead Time	24 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects D-Sub, D-Shaped Connectors D-Sub Connector Assemblies
Manufacturer		NorComp
Series		NANOOK
Packaging		Tray
Part Status		Active
Features		Grounding Indents
Connector Type		Plug, Male Pins
Contact Finish		Gold
Mounting Type		Panel Mount
Number of Positions		9 (5 + 4 Power)
Number of Rows		2
Operating Temperature		-25°C ~ 85°C
Contact Type		Signal and Power
Flange Feature		Mating Side, Female Screwlock (4-40)
Termination		Solder Cup
Ingress Protection		IP67 - Dust Tight, Waterproof
Connector Style		D-Sub, Combo
Contact Finish Thickness		30.0µin (0.76µm)
Material Flammability Rating		UL94 V-0
Dielectric Material		Polybutylene Terephthalate (PBT)
Shell Material, Finish		Steel, Nickel Plated
Contact Material		Brass
Shell Size, Connector Layout		3 (DB, B) - 9W4
Contact Form		Machined

RESOURCE TYPE		LINK
Datasheets		CDFS9W4103L412

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4030
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
