CDEP134-0R9MC

Part Number
CDEP134-0R9MC
Manufacturer Sumida Corporation
Other Part Numbers
308-1001-2-ND
CDEP134-0R9MC-ND
CDEP134-0R9
CDEP134-0R9-ND
308-1001-2
*CDEP134-0R9MC
308-1001-1
Description FIXED IND 900NH 17A 2.5 MOHM SMD

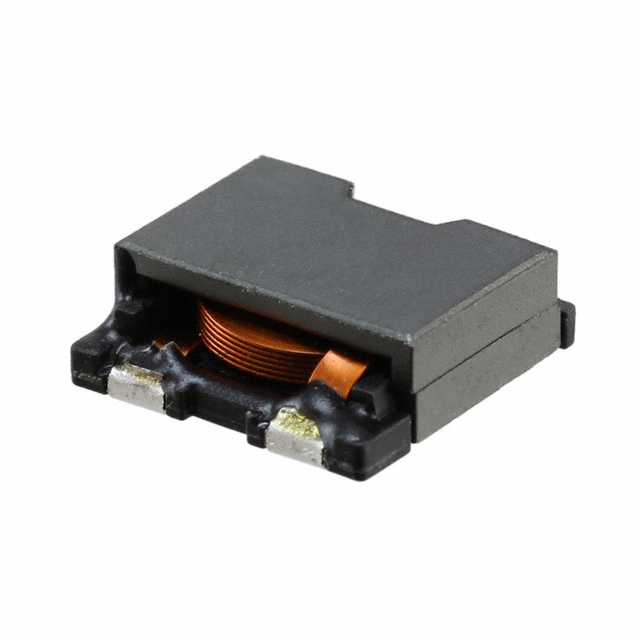

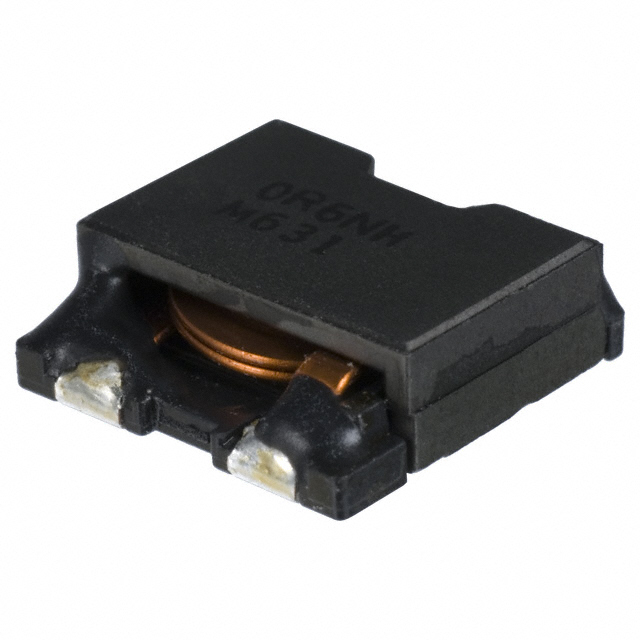

Detailed Description 900 nH Shielded Wirewound Inductor 17 A 2.5mOhm Max Nonstandard

Product Attributes

Category
Manufacturer Sumida Corporation
Series
CDEP134
Packaging
Tape & Reel (TR)
Part Status Obsolete
Tolerance ±20%
Package / Case Nonstandard
Size / Dimension 0.531" L x 0.531" W (13.50mm x 13.50mm)
Mounting Type Surface Mount
Shielding Shielded
Type Wirewound
Operating Temperature -40°C ~ 100°C
DC Resistance (DCR) 2.5mOhm Max
Current - Saturation (Isat) 21.6A
Inductance Frequency - Test 100 kHz
Height - Seated (Max) 0.197" (5.00mm)
Inductance 900 nH
Current Rating (Amps) 17 A

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.4000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status RoHS non-compliant

Obsolete

This product is no longer manufactured.
