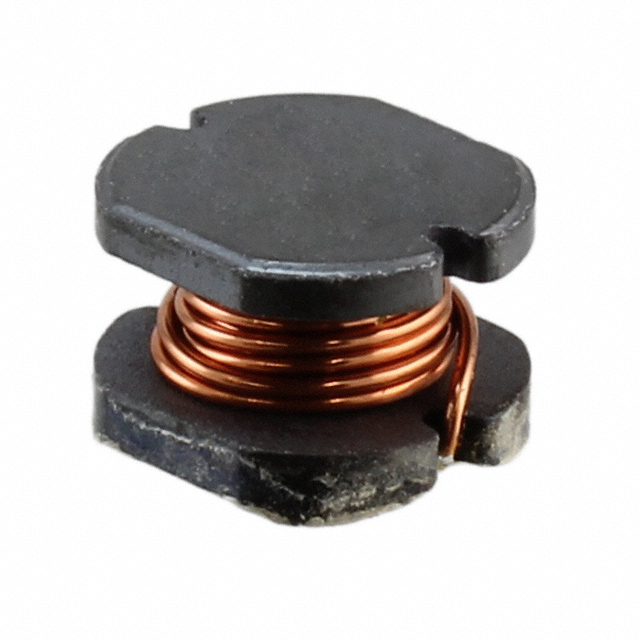

CD75NP-120KC

Part Number
CD75NP-120KC
Manufacturer Sumida Corporation
Other Part Numbers
308-1870-2-ND
308-1870-1-ND
308-1870-6-ND
308-1870-6
308-1870-1
308-1870-2
Description FIXED IND 12UH 2A 80 MOHM SMD
Detailed Description 12 µH Unshielded Inductor 2 A 80mOhm Max Nonstandard
Manufacturer Standard Lead Time 28 weeks

Product Attributes

Category
Manufacturer Sumida Corporation
Series
CD75
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Tolerance ±10%
Package / Case Nonstandard
Size / Dimension 0.307" L x 0.276" W (7.80mm x 7.00mm)
Mounting Type Surface Mount
Shielding Unshielded
Operating Temperature -40°C ~ 100°C
DC Resistance (DCR) 80mOhm Max
Material - Core Ferrite
Inductance Frequency - Test 2.52 MHz
Height - Seated (Max) 0.217" (5.50mm)
Inductance 12 µH
Current Rating (Amps) 2 A

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status ROHS3 Compliant
