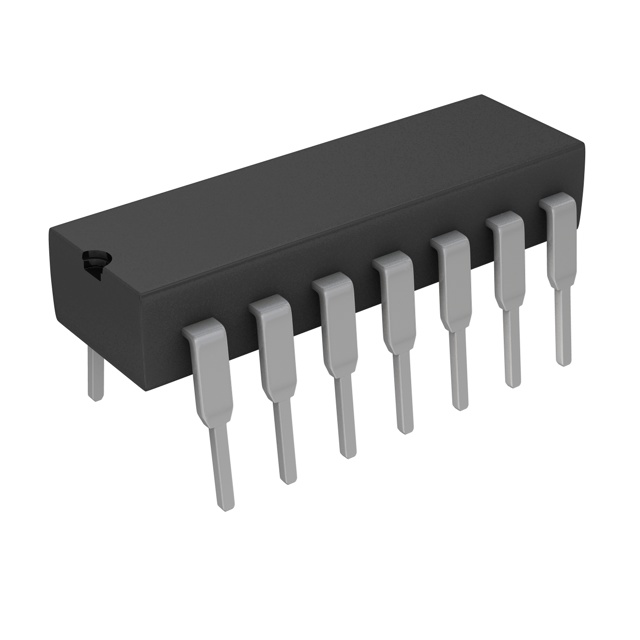

CD74HC93E

CD74HC93E

Part Number	CD74HC93E
Manufacturer	Texas Instruments
Other Part Numbers	296-33124-5-ND 2156-CD74HC93E 296-33124-5 CD74HC93E-ND TEXTISCD74HC93E -CD74HC93EE4-NDR -CD74HC93EE4
Description	IC BINARY COUNTER 4-BIT 14DIP
Detailed Description	Counter IC Binary Counter 1 Element 4 Bit Negative Edge 14-PDIP
Manufacturer Standard Lead Time	12 weeks

Product Attributes

Category		Integrated Circuits (ICs) Logic Counters, Dividers
Manufacturer		Texas Instruments
Series		74HC
Packaging		Tube
Part Status		Active
Package / Case		14-DIP (0.300", 7.62mm)
Mounting Type		Through Hole
Number of Elements		1
Logic Type		Binary Counter
Reset		Asynchronous
Operating Temperature		-55°C ~ 125°C
Direction		Up
Trigger Type		Negative Edge
Supplier Device Package		14-PDIP
Voltage - Supply		2 V ~ 6 V
Count Rate		35 MHz
Number of Bits per Element		4

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CD74HC93E
PCN Design/Specification		Material Set 30/Mar/2017
PCN Design/Specification		Copper Bond Wire Revision A 04/Dec/2013
HTML Datasheet		CD74HC(T)93 Datasheet

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 286

Can ship immediately.
