CD74FCT574ATE _ Flip Flops_Logic_Integrated Circuits (ICs)

Part Number	CD74FCT574ATE
Manufacturer	Harris Corporation
Other Part Numbers	2156-CD74FCT574ATE-ND HARHARCD74FCT574ATE 2156-CD74FCT574ATE
Description	FAST OCTAL D REGISTER
Detailed Description	Flip Flop 1 Element D-Type 8 Bit Positive Edge 20-DIP (0.300", 7.62mm)

Category		Integrated Circuits (ICs) Logic Flip Flops
Manufacturer		Harris Corporation
Series
Packaging		Bulk
Part Status		Active

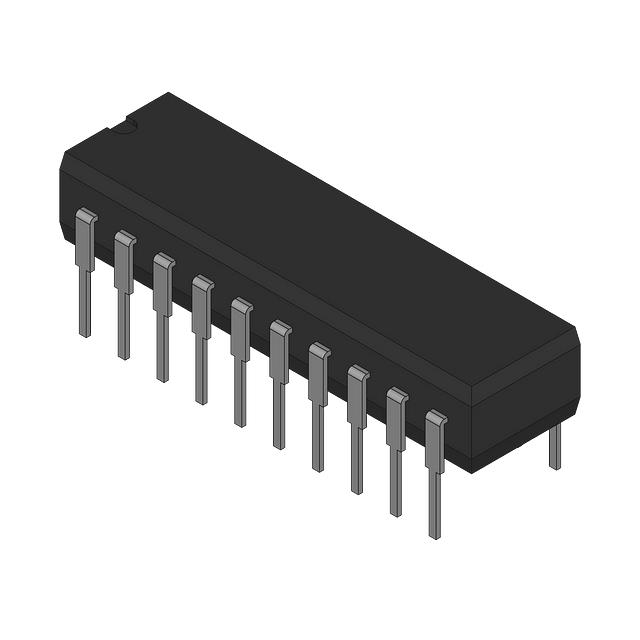

Package / Case		20-DIP (0.300", 7.62mm)
Output Type		Tri-State, Non-Inverted
Mounting Type		Through Hole
Number of Elements		1
Function		Standard
Type		D-Type
Operating Temperature		0°C ~ 70°C (TA)
Voltage - Supply		4.75V ~ 5.25V
Current - Quiescent (Iq)		8 µA
Current - Output High, Low		15mA, 48mA
Trigger Type		Positive Edge
Input Capacitance		10 pF
Supplier Device Package		20-PDIP
Max Propagation Delay @ V, Max CL		5.6ns @ 5V, 50pF
Number of Bits per Element		8

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		Vendor Undefined
RoHS Status		RoHS non-compliant
