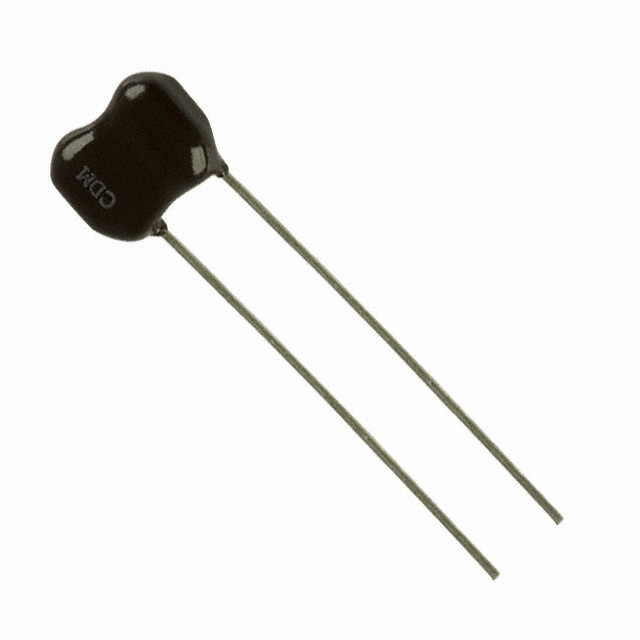

CD15ED270JO3

CD15ED270JO3

Part Number	CD15ED270JO3
Manufacturer	Illinois Capacitor (Cornell Dubilier Electronics)
Other Part Numbers	338-1085-ND CD15ED270J03 338-1085
Description	CAP MICA 27PF 5% 500V RADIAL
Detailed Description	27 pF Mica Capacitor 500 V Radial
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Product Attributes

Category		Capacitors Mica and PTFE Capacitors
Manufacturer		Illinois Capacitor (Cornell Dubilier Electronics)
Series		CD15
Packaging		Bulk
Part Status		Active
Tolerance		±5%
Features		General Purpose
Package / Case		Radial
Size / Dimension		0.449" L x 0.169" W (11.40mm x 4.30mm)
Mounting Type		Through Hole
Operating Temperature		-55°C ~ 125°C
Lead Spacing		0.232" (5.90mm)
Dielectric Material		Mica
Height - Seated (Max)		0.358" (9.10mm)
Capacitance		27 pF
Voltage - Rated		500 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CD15ED270JO3
Datasheets		Compliance Declaration CDE
Datasheets		RF MICA Series Side 1
Datasheets		RF MICA Series Side 2
Datasheets		Mica Radial Capacitor Ordering Guide

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8532.29.0020
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Affected
RoHS Status		RoHS non-compliant

In Stock: 948

Can ship immediately.
