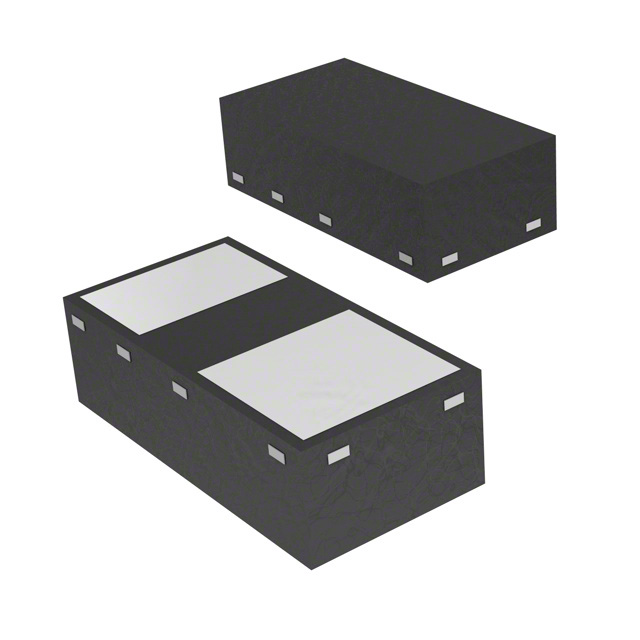

CCS15F40,L3F

CCS15F40,L3F

Part Number	CCS15F40,L3F
Manufacturer	Toshiba Electronic Devices and Storage Corporation
Other Part Numbers	CCS15F40L3FTR-ND CCS15F40L3FCT-ND CCS15F40L3FDKR-ND CCS15F40L3FCT CCS15F40,L3F(B CCS15F40L3FTR CCS15F40,L3F(T CCS15F40L3FDKR
Description	DIODE SCHOTTKY 40V 1.5A CST2C
Detailed Description	Diode 40 V 1.5A Surface Mount CST2C
Manufacturer Standard Lead Time	12 weeks

Product Attributes

Category		Discrete Semiconductor Products Diodes Rectifiers Single Diodes
Manufacturer		Toshiba Electronic Devices and Storage Corporation
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		2-SMD, No Lead
Mounting Type		Surface Mount
Speed		Fast Recovery =< 500ns, > 200mA (Io)
Technology		Schottky
Capacitance @ Vr, F		130pF @ 0V, 1MHz
Current - Average Rectified (Io)		1.5A
Supplier Device Package		CST2C
Operating Temperature - Junction		150°C (Max)
Voltage - DC Reverse (Vr) (Max)		40 V
Voltage - Forward (Vf) (Max) @ If		640 mV @ 1.5 A
Current - Reverse Leakage @ Vr		25 µA @ 40 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CCS15F40,L3F

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.10.0080
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
