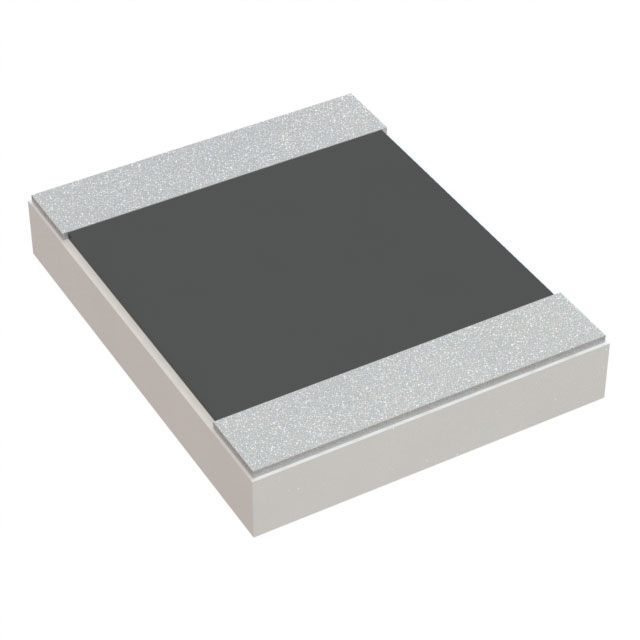

CC2520FC-0.10-1%

CC2520FC-0.10-1%

Part Number	CC2520FC-0.10-1%
Manufacturer	Caddock Electronics, Inc.
Other Part Numbers	CC2520FC-0.10-1%-ND Q9136005 Q9136004
Description	RES 0.1 OHM 1% 1.5W 2520
Detailed Description	100 mOhms ±1% 1.5W Chip Resistor 2520 (6450 Metric) Current Sense, Pulse Withstanding Ceramic

Product Attributes

Category		Resistors Chip Resistor - Surface Mount
Manufacturer		Caddock Electronics, Inc.
Series		CC
Packaging		Tape & Reel (TR)
Part Status		Active
Power (Watts)		1.5W
Tolerance		±1%
Features		Current Sense, Pulse Withstanding
Package / Case		2520 (6450 Metric)
Temperature Coefficient		0/ +200ppm/°C
Size / Dimension		0.250" L x 0.200" W (6.35mm x 5.08mm)
Composition		Ceramic
Operating Temperature		-55°C ~ 150°C
Number of Terminations		2
Supplier Device Package		2520
Height - Seated (Max)		0.045" (1.14mm)
Resistance		100 mOhms

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8533.21.0030
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 24000

Can ship immediately.
