CC02-6N8J-RC _ Fixed Inductors_Inductors, Coils, Chokes

Part Number	CC02-6N8J-RC
Manufacturer	Allied Components International
Other Part Numbers	3475-CC02-6N8J-RCTR-ND 3475-CC02-6N8J-RCTR

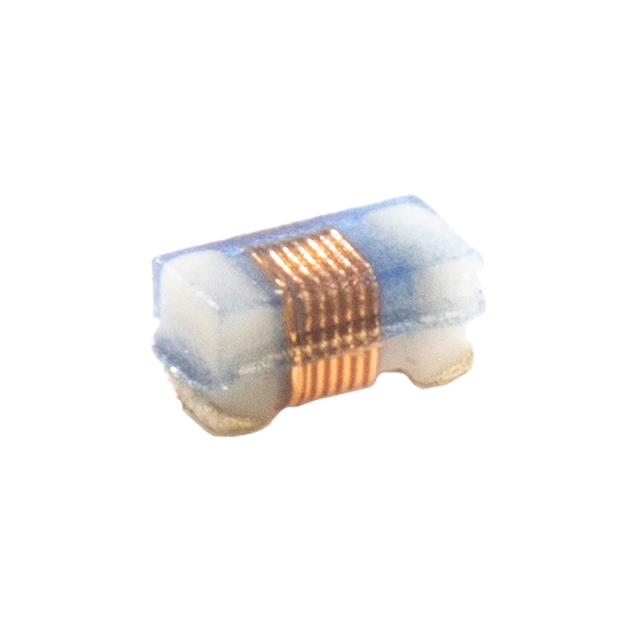

Description	6.8nH +/-5% Ceramic Core Chip
Detailed Description	6.8 nH Unshielded Wirewound Inductor 83mOhm Max 0402 (1005 Metric)
Datasheet	Datasheet

Category		Inductors, Coils, Chokes Fixed Inductors
Manufacturer		Allied Components International
Series		CC02
Packaging		Tape & Reel (TR)
Part Status		Active
Tolerance		±5%
Package / Case		0402 (1005 Metric)
Size / Dimension		0.050" L x 0.030" W (1.27mm x 0.76mm)
Mounting Type		Surface Mount
Shielding		Unshielded
Type		Wirewound
Operating Temperature		-40°C ~ 125°C
DC Resistance (DCR)		83mOhm Max
Q @ Freq		20 @ 250MHz
Frequency - Self Resonant		4.8GHz
Current - Saturation (Isat)		680mA
Material - Core		Ceramic
Inductance Frequency - Test		250 MHz
Supplier Device Package		0402
Height - Seated (Max)		0.024" (0.61mm)
Inductance		6.8 nH

RESOURCE TYPE		LINK
Datasheets		CC02-6N8J-RC

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.50.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH info available upon request
RoHS Status		RoHS Compliant
