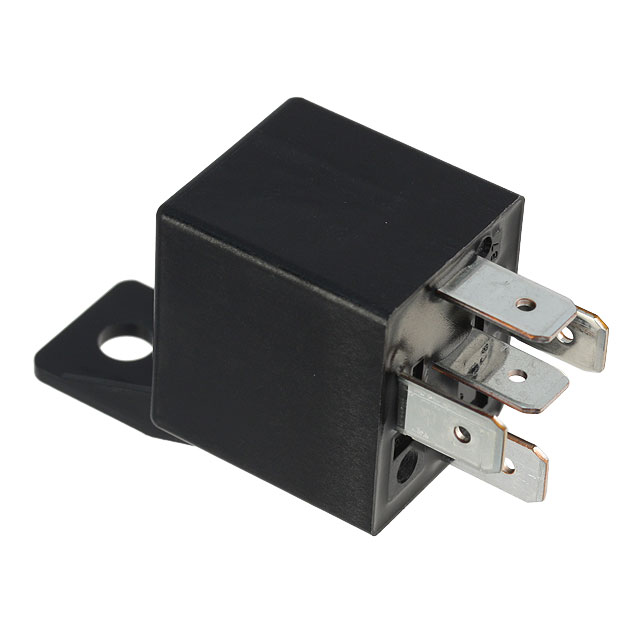

CB1F-M-12V

CB1F-M-12V

Part Number	CB1F-M-12V
Manufacturer	Panasonic Electric Works
Other Part Numbers	255-2730-ND CB1F-M-12V-ND CB1FM12V 255-2730
Description	RELAY AUTOMOTIVE SPDT 40A 12V
Manufacturer Standard Lead Time	24 weeks
Datasheet	Datasheet

Product Attributes

Category		Relays Automotive Relays
Manufacturer		Panasonic Electric Works
Series		CB
Packaging		Bulk
Part Status		Active
Features		Sealed - Flux Protection
Mounting Type		Chassis Mount
Coil Voltage		12VDC
Operating Temperature		-40°C ~ 85°C
Termination Style		Quick Connect - 0.250" (6.3mm)
Coil Current		117 mA
Coil Type		Non Latching
Contact Form		SPDT (1 Form C)
Contact Rating (Current)		40 A
Switching Voltage		14VDC - Nom
Must Release Voltage		1.2 VDC
Must Operate Voltage		7 VDC
Operate Time		15 ms
Release Time		15 ms

Documents & Media

RESOURCE TYPE		LINK
Datasheets		How to Read Date Codes
Datasheets		CB Series (1 Form C) Circuit

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.41.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 1381

Can ship immediately.
