CB0.81-2IPX4L-12IN-6O _ Coaxial Cables (RF)_Cable Assemblies

Part Number	CB0.81-2IPX4L-12IN-6O
Manufacturer	Lighthorse Technologies Inc.
Other Part Numbers	2868-CB0.81-2IPX4L-12IN-6O-ND 2868-CB0.81-2IPX4L-12IN-6O
Description	CBL ASSY MHF4L-MHF4L PL-PL 12"

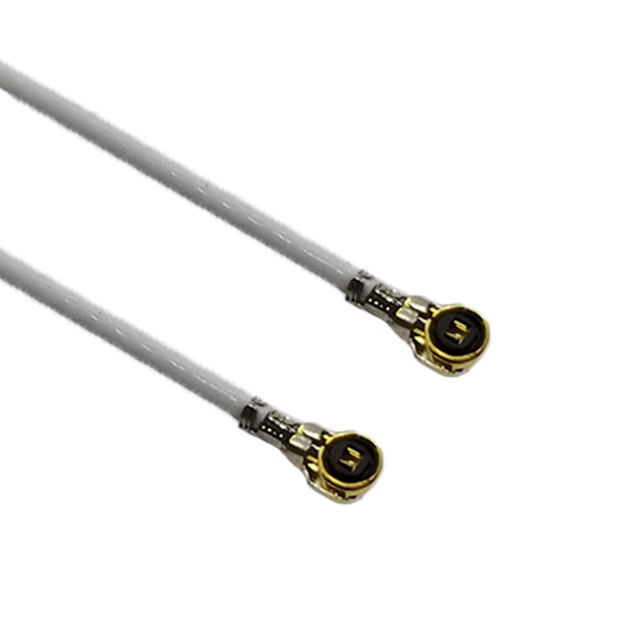

Detailed Description	Cable Assembly Coaxial IPEX MHF4L to IPEX MHF4L 0.81mm OD Coaxial Cable 12.00" (304.80mm)
Datasheet	Datasheet

Category		Cable Assemblies Coaxial Cables (RF)
Manufacturer		Lighthorse Technologies Inc.
Series		MHF® 4L
Packaging		Bulk
Part Status		Active
Features		Opposite Orientation, Shielded
Color		White
Length		12.00" (304.80mm)
Style		IPEX MHF4L to IPEX MHF4L
Operating Temperature		-40°C ~ 90°C
Cable Type		0.81mm OD Coaxial Cable
1st Connector		IPEX MHF4L Plug, Right Angle
2nd Connector		IPEX MHF4L Plug, Right Angle
Frequency - Max		12 GHz
1st Connector Mounting Type		Free Hanging (In-Line)
2nd Connector Mounting Type		Free Hanging (In-Line)
1st Contact Gender		Female
2nd Contact Gender		Female
Cable Impedance		50 Ohms
Overall Impedance		50 Ohms

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8544.20.0000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
