CARSMF10AMH4L-001

CARSMF10AMH4L-001

Part Number	CARSMF10AMH4L-001
Manufacturer	TE Connectivity Laird
Other Part Numbers	994-CARSMF10AMH4L-001-ND 994-CARSMF10AMH4L-001
Description	CBL ASSY RPSMA-MHF4L J-PL 3.937"

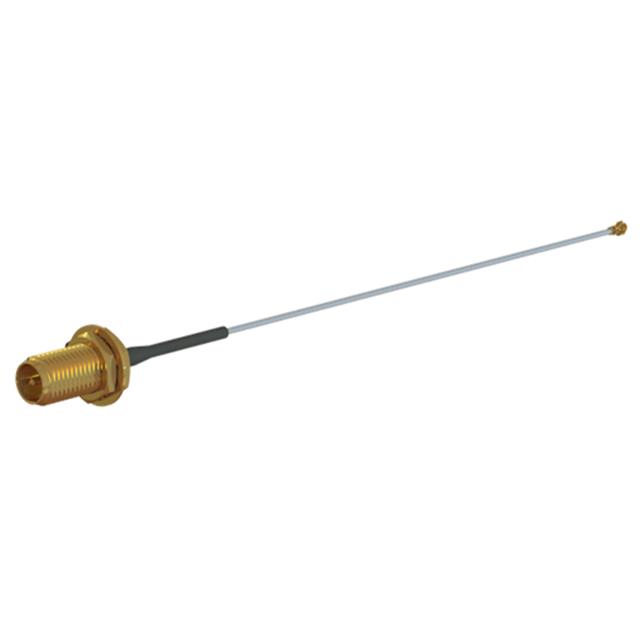

Detailed Description	Cable Assembly Coaxial RP-SMA to IPEX MHF4L 1.13mm OD Coaxial Cable 3.937" (100.00mm)
Manufacturer Standard Lead Time	9 weeks
Datasheet	Datasheet

Product Attributes

Category		Cable Assemblies Coaxial Cables (RF)
Manufacturer		TE Connectivity Laird
Series
Packaging		Bulk
Part Status		Active
Color		Gray
Length		3.937" (100.00mm)
Style		RP-SMA to IPEX MHF4L
Operating Temperature		-30°C ~ 80°C
Cable Type		1.13mm OD Coaxial Cable
1st Connector		RP-SMA Jack
2nd Connector		IPEX MHF4L Plug, Right Angle
Frequency - Max		6 GHz
1st Connector Mounting Type		Panel Mount
2nd Connector Mounting Type		Free Hanging (In-Line)
1st Contact Gender		Male
2nd Contact Gender		Female
Overall Impedance		50 Ohms
1st Connector Mounting Feature		Bulkhead - Front Side Nut

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CARSMF10AMH4L-001
Datasheets		MHF4L to RP SMA Cable DC to 7.5 GHz

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8544.20.0000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant
