CA11268_HEIDI-W _ Lenses_Optoelectronics_

+86-0755-8325-4547

CA11268_HEIDI-W

CA11268_HEIDI-W

Part Number	CA11268_HEIDI-W
Manufacturer	LEDiL
Other Part Numbers	711-1186-ND 711-1186 CA11268_HEIDI-W-N119 CA11268_HEIDI-W-ND CA11268_HEIDI-W-N119-ND CA11268HEIDIW
Description	LENS CLR 31-34DEG WIDE ADH TAPE

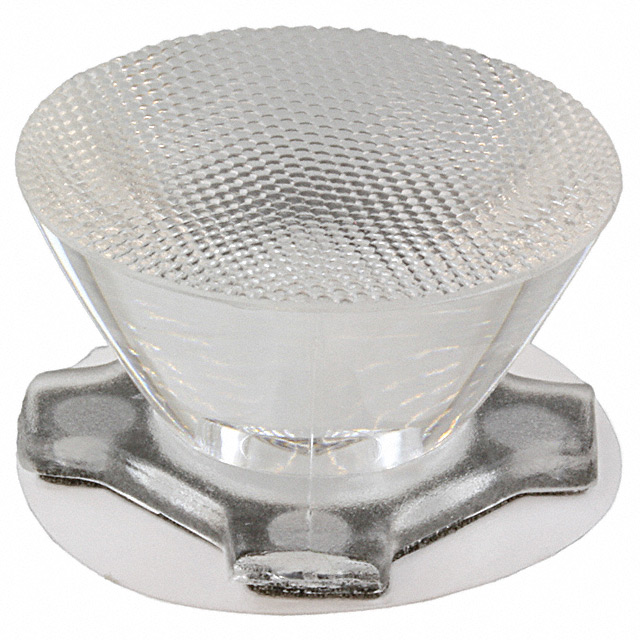

Detailed Description	Lens with Integrated Mount Clear 31° ~ 34° Wide Adhesive Tape
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Product Attributes

Category		Optoelectronics Lenses
Manufacturer		LEDiL
Series		HEIDI
Packaging		Tray
Part Status		Active
Color		Clear
Mounting Type		Adhesive Tape
Material		Acrylic
Type		Lens with Integrated Mount
Viewing Angle		31° ~ 34°
Optical Pattern		Wide
Lens Transparency		Diffused
Lens Style		Round with Flat Top
Lens Size		21.6mm Dia
For Use With/Related Manufacturer		Cree, Lumileds, Nichia, Osram, Samsung, Seoul, Sharp
Number of LEDs		1

Documents & Media

RESOURCE TYPE		LINK
Datasheets		CA11268_HEIDI-W
Datasheets		Ledil CA Prop 65
Datasheets		Ledil RoHS/REACH
Datasheets		All Dev Mat Chgs 26/Nov/2021
Datasheets		All parts PMMA Material 13/Oct/2023
Datasheets		Mult Dev Tape Chgs 14/Oct/2020
Datasheets		Heidi-Series Drawing Rev1

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		9001.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
