C8051F966-B-GMR _ Microcontrollers_Embedded_Integrated Circuits (ICs)

Part Number	C8051F966-B-GMR
Manufacturer	Silicon Labs
Other Part Numbers	C8051F966-B-GMR-ND
Description	IC MCU 8BIT 32KB FLASH 76DQFN
Detailed Description	8051 C8051F9xx Microcontroller IC 8-Bit 25MHz 32KB (32K x 8) FLASH 76-DQFN (6x6)

Category		Integrated Circuits (ICs) Embedded Microcontrollers
Manufacturer		Silicon Labs
Series		C8051F9xx
Packaging		Tape & Reel (TR)
Part Status		Not For New Designs

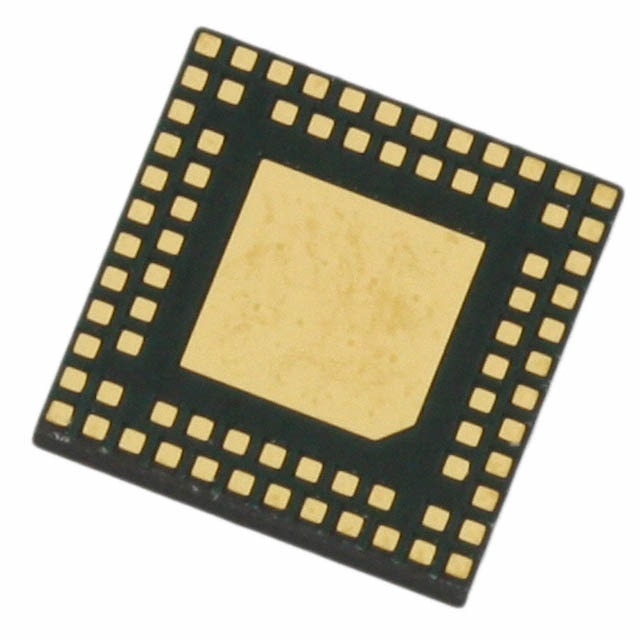

Package / Case		76-VFQFN Dual Rows, Exposed Pad
Mounting Type		Surface Mount
Speed		25MHz
Program Memory Size		32KB (32K x 8)
RAM Size		8.25K x 8
Operating Temperature		-40°C ~ 85°C (TA)
Oscillator Type		Internal
Program Memory Type		FLASH
Core Processor		8051
Data Converters		A/D 16x10b/12b
Core Size		8-Bit
Voltage - Supply (Vcc/Vdd)		1.8V ~ 3.8V
Connectivity		I2C, SPI, UART/USART
Peripherals		DMA, LCD, POR, PWM, WDT
Supplier Device Package		76-DQFN (6x6)
Number of I/O		57
DigiKey Programmable		Not Verified

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		5A992C
HTSUS		8542.31.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
RoHS Status		ROHS3 Compliant

Not recommended for new design, minimums may apply.
