C8051F524A-IM _ Microcontrollers_Embedded_Integrated Circuits (ICs)

Part Number	C8051F524A-IM
Manufacturer	Silicon Labs
Other Part Numbers	336-1492-5-ND -C8051F524A 336-1492-5
Description	IC MCU 8BIT 4KB FLASH 10DFN
Detailed Description	8051 C8051F52x Microcontroller IC 8-Bit 25MHz 4KB (4K x 8) FLASH 10-DFN (3x3)
Manufacturer Standard Lead Time	52 weeks
Datasheet	Datasheet

Category		Integrated Circuits (ICs) Embedded Microcontrollers
Manufacturer		Silicon Labs
Series		C8051F52x
Packaging		Tube
Part Status		Active

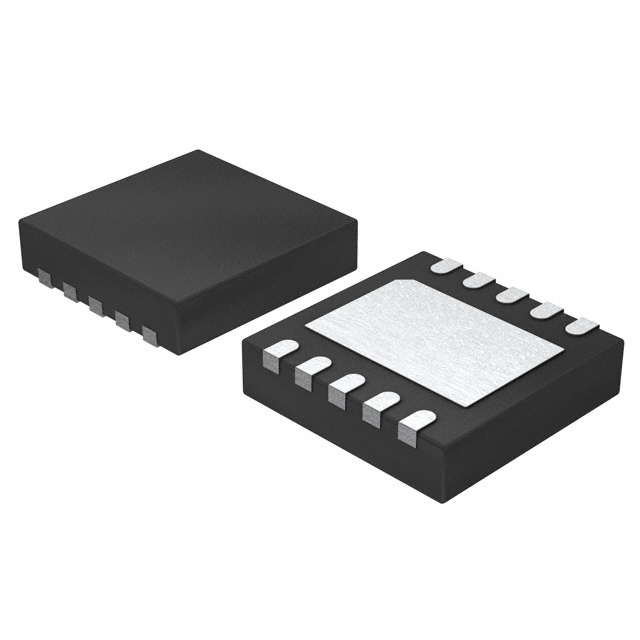

Package / Case		10-VFDFN Exposed Pad
Mounting Type		Surface Mount
Speed		25MHz
Program Memory Size		4KB (4K x 8)
RAM Size		256 x 8
Operating Temperature		-40°C ~ 125°C (TA)
Oscillator Type		Internal
Program Memory Type		FLASH
Core Processor		8051
Data Converters		A/D 6x12b
Core Size		8-Bit
Voltage - Supply (Vcc/Vdd)		1.8V ~ 5.25V
Connectivity		SPI, UART/USART
Peripherals		Brown-out Detect/Reset, POR, PWM, Temp Sensor, WDT
Supplier Device Package		10-DFN (3x3)
Number of I/O		6
DigiKey Programmable		Not Verified

RESOURCE TYPE		LINK
Datasheets		C8051F524A-IM
Datasheets		C8051F52x/53x 11/Jan/2023
Datasheets		Mult DEV Box/Shipping Label 20/Mar/2024

ATTRIBUTE		DESCRIPTION
ECCN		3A991A2
HTSUS		8542.31.0001
Moisture Sensitivity Level (MSL)		1 (Unlimited)
