C204BLBSYLY6WT55XAA _ LCD, OLED Character and Numeric_Optoelectronics

Part Number	C204BLBSYLY6WT55XAA
Manufacturer	Focus LCDs
Other Part Numbers	2632-C204BLBSYLY6WT55XAA-ND 2632-C204BLBSYLY6WT55XAA

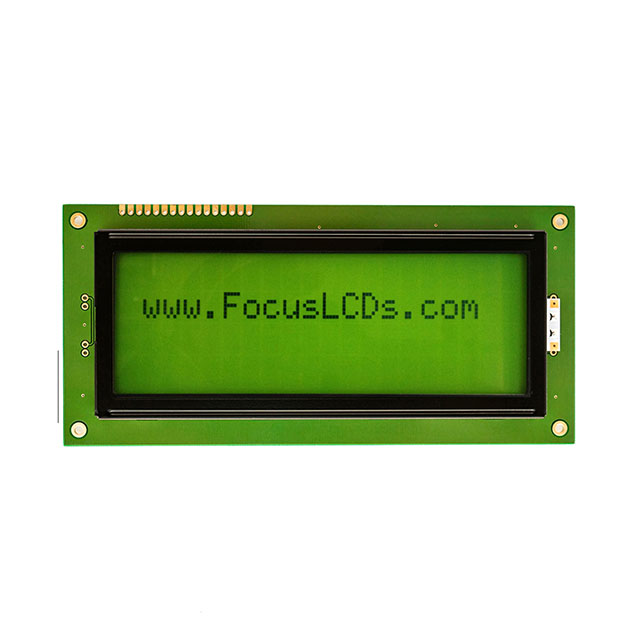

Description	20X4 STN YELLOW/GREEN CHARACTER
Detailed Description	Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow Parallel 155.50mm x 73.00mm x 14.00mm
Datasheet	Datasheet

Category		Optoelectronics LCD, OLED Character and Numeric
Manufacturer		Focus LCDs
Series
Packaging		Box
Part Status		Active
Display Type		STN - Super-Twisted Nematic
Display Mode		Transflective
Backlight		LED - Yellow
Interface		Parallel
Operating Temperature		-20°C ~ 70°C
Voltage - Supply		5V
Viewing Area		123.00mm L x 42.50mm W
Character Size		9.22mm H x 4.84mm W
Display Format		20 x 4
Character Format		5 x 8 Dots
Dot Size		0.92mm W x 1.10mm H
Controller Type		ST7066U
Outline L x W x H		155.50mm x 73.00mm x 14.00mm
Text Color		Black
Background Color		Yellow/Green
Number of Characters		80.0

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8531.20.0020
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
