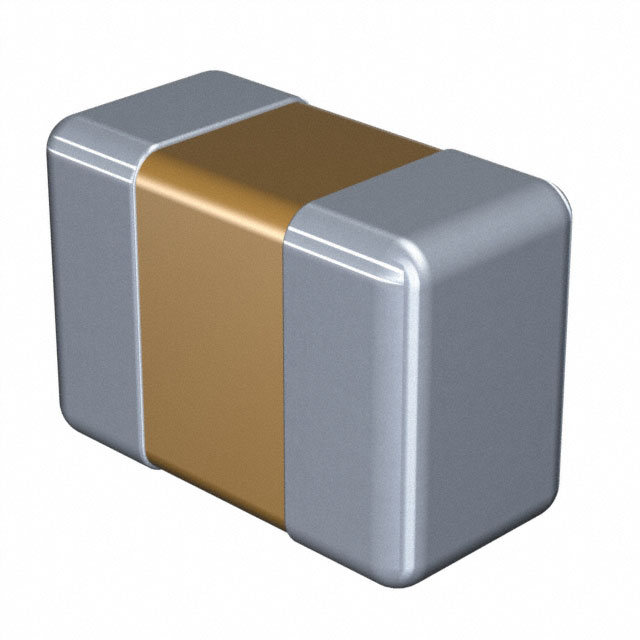

C1005X7S2A682M050BB

C1005X7S2A682M050BB

Part Number	C1005X7S2A682M050BB
Manufacturer	TDK Corporation
Other Part Numbers	445-6029-2-ND 445-6029-1-ND 445-6029-6-ND C1005X7S2A682MT000F 445-6029-1 445-6029-2 C1005X7S2A682M 445-6029-6
Description	CAP CER 6800PF 100V X7S 0402
Detailed Description	6800 pF ±20% 100V Ceramic Capacitor X7S 0402 (1005 Metric)
Datasheet	Datasheet

Product Attributes

Category		Capacitors Ceramic Capacitors
Manufacturer		TDK Corporation
Series		C
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Not For New Designs
Tolerance		±20%
Voltage - Rated		100V
Package / Case		0402 (1005 Metric)
Temperature Coefficient		X7S
Size / Dimension		0.039" L x 0.020" W (1.00mm x 0.50mm)
Mounting Type		Surface Mount, MLCC
Operating Temperature		-55°C ~ 125°C
Applications		General Purpose
Thickness (Max)		0.022" (0.55mm)
Capacitance		6800 pF

Documents & Media

RESOURCE TYPE		LINK
Datasheets		C1005X7S2A682M050BB
Datasheets		C1005X7S2A682M050BB Character Sheet
Datasheets		C Series, Gen Appl & Mid-Voltage Spec
Datasheets		RoHS Certificate-MLCC
Datasheets		MLCC Part Number Change 30/Nov/2012

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8532.24.0020
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 7890

Can ship immediately.

Not recommended for new design, minimums may apply.
