BZX84-C7V5,215

BZX84-C7V5,215

Part Number	BZX84-C7V5,215
Manufacturer	NXP Semiconductors
Other Part Numbers	2156-BZX84-C7V5,215-954-ND 2156-BZX84-C7V5,215-954
Description	NEXPERIA BZX84-C7V5 - ZENER DIOD
Detailed Description	Zener Diode 7.5 V 250 mW ±5% Surface Mount TO-236AB
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Diodes Zener Single Zener Diodes
Manufacturer		NXP Semiconductors
Series
Packaging		Bulk
Part Status		Active
Tolerance		±5%

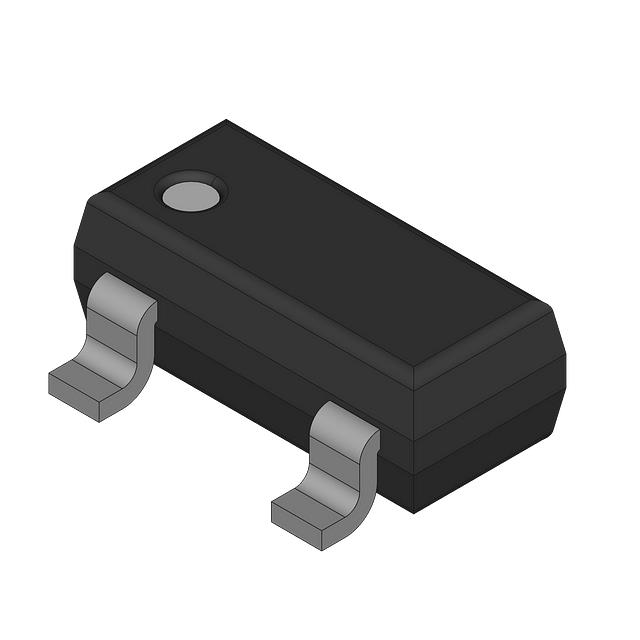

Package / Case		TO-236-3, SC-59, SOT-23-3
Mounting Type		Surface Mount
Operating Temperature		-65°C ~ 150°C
Voltage - Zener (Nom) (Vz)		7.5 V
Impedance (Max) (Zzt)		15 Ohms
Supplier Device Package		TO-236AB
Grade		Automotive
Power - Max		250 mW
Voltage - Forward (Vf) (Max) @ If		900 mV @ 10 mA
Current - Reverse Leakage @ Vr		1 µA @ 5 V
Qualification		AEC-Q101

Documents & Media

RESOURCE TYPE		LINK
Datasheets		BZX84-C7V5,215

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
