BZW06-19B

Part Number
BZW06-19B
Manufacturer STMicroelectronics
Other Part Numbers
497-12464-1-ND
497-12464-3-ND
BZW06-19B-ND
BZW0619B
-497-12464-3
-497-12464-1
497-12464-1
497-12464-3

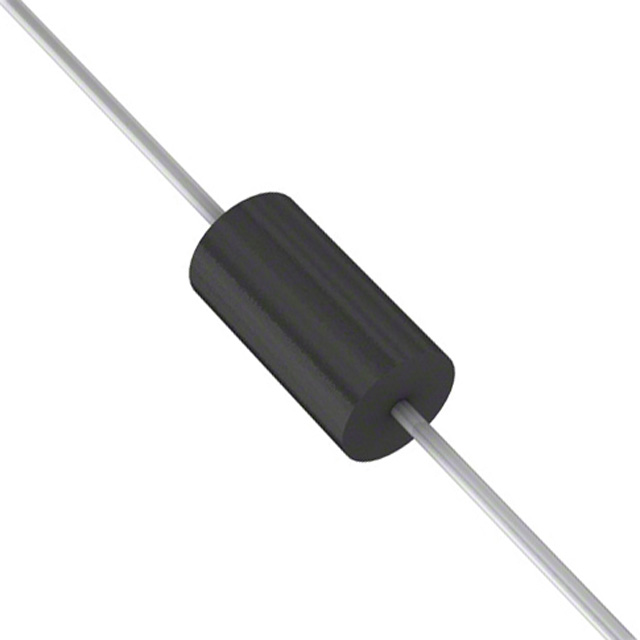

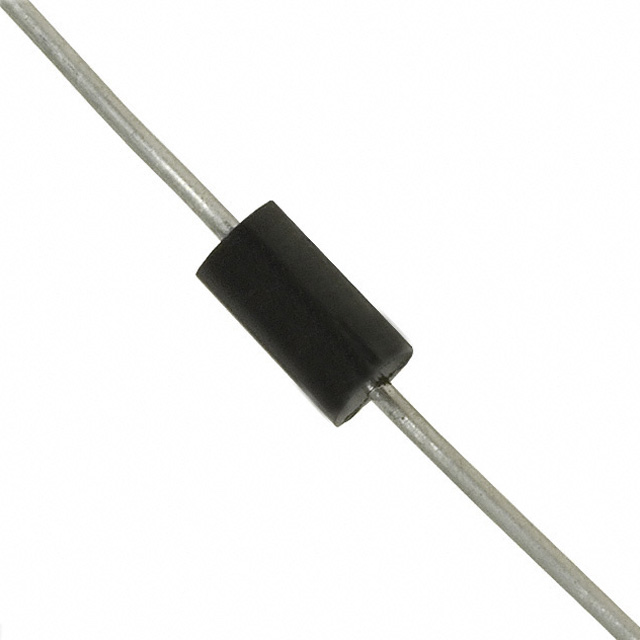

Description TVS DIODE 18.8VWM 39.3VC DO15
Detailed Description 39.3V Clamp 102A (8/20µs) Ipp Tvs Diode Through Hole DO-204AC (DO-15)
Datasheet Datasheet

Product Attributes

Category
Manufacturer STMicroelectronics
Series
BZW06, TRANSIL™
Packaging
Cut Tape (CT)
Tape & Box (TB)
Part Status Obsolete
Package / Case DO-204AC, DO-15, Axial
Mounting Type Through Hole
Type Zener
Operating Temperature -55°C ~ 175°C (TJ)
Applications General Purpose
Capacitance @ Frequency 675pF @ 1MHz
Current - Peak Pulse (10/1000µs) 102A (8/20µs)
Voltage - Reverse Standoff (Typ) 18.8V
Supplier Device Package DO-204AC (DO-15)
Bidirectional Channels 1
Voltage - Breakdown (Min) 20.9V
Voltage - Clamping (Max) @ Ipp 39.3V
Power - Peak Pulse 600W
Power Line Protection No

Documents & Media

RESOURCE TYPE LINK
Datasheets BZW06-19B
Datasheets BZW06 View All Specifications
Datasheets Mult Dev OBS 27/Mar/2019

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0080
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
