BZT52H-C18,115

Part Number
BZT52H-C18,115
Manufacturer NXP Semiconductors
Other Part Numbers
2156-BZT52H-C18,115-954-ND
2156-BZT52H-C18,115-954
Description NEXPERIA BZT52H-C18 - ZENER DIOD

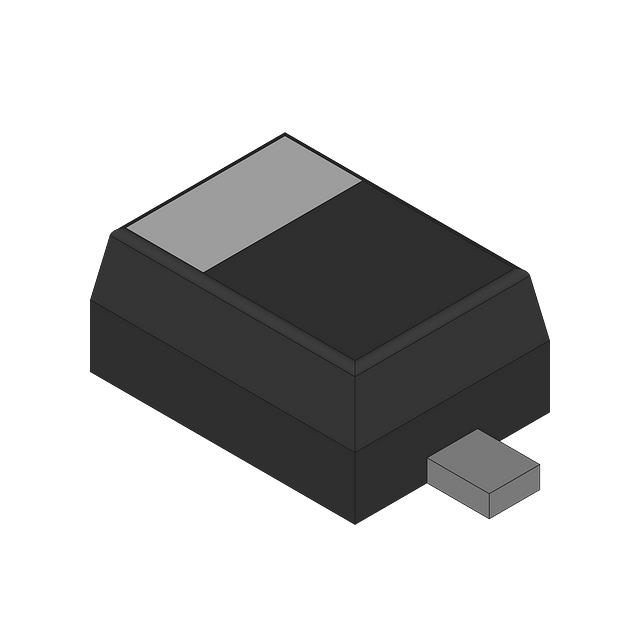

Detailed Description Zener Diode 18 V 375 mW ±5% Surface Mount SOD-123F
Datasheet Datasheet

Product Attributes

Category
Manufacturer NXP Semiconductors
Series
Packaging
Bulk
Part Status Active
Tolerance ±5%
Package / Case SOD-123F
Mounting Type Surface Mount
Operating Temperature -65°C ~ 150°C (TA)
Voltage - Zener (Nom) (Vz) 18 V
Impedance (Max) (Zzt) 20 Ohms
Supplier Device Package SOD-123F
Grade Automotive
Power - Max 375 mW
Voltage - Forward (Vf) (Max) @ If 900 mV @ 10 mA
Current - Reverse Leakage @ Vr 50 nA @ 12.6 V
Qualification AEC-Q101

Documents & Media

RESOURCE TYPE LINK
Datasheets BZT52H-C18,115

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
