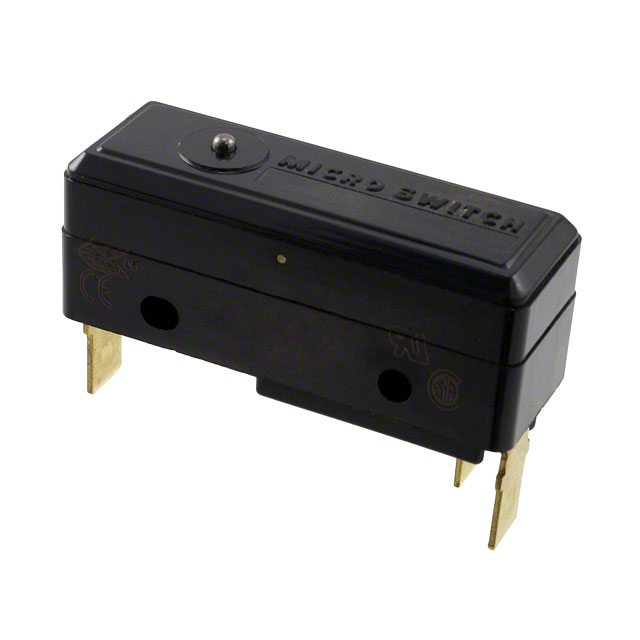

BZ-2R-D5 _ Limit Switches_Switches

Part Number	BZ-2R-D5
Manufacturer	Honeywell Sensing and Productivity Solutions
Other Part Numbers	480-4580-ND BZ-2R-D5-ND BZ2RD5 2266-BZ-2R-D5 480-4580
Description	SWITCH SNAP ACTION SPDT 15A 125V
Detailed Description	Switch SPDT Chassis Mount

Category		Switches Limit Switches
Manufacturer		Honeywell Sensing and Productivity Solutions
Series		BZ
Packaging		Bulk
Part Status		Obsolete
Current Rating (Amps)		15A (AC), 500mA (DC)
Mounting Type		Chassis Mount
Circuit		SPDT
Switch Function		On-Mom
Operating Temperature		-55°C ~ 85°C
Termination Style		Quick Connect - 0.250" (6.3mm)
Actuator Type		Round (Pin Plunger)
Operating Force		255 ~ 368gf
Release Force		113gf
Pretravel		0.015" (0.4mm)
Differential Travel		0.002" (0.05mm)
Overtravel		0.005" (0.13mm)
Operating Position		0.625" (15.9mm)
Voltage Rating - AC		125 V
Voltage Rating - DC		125 V

RESOURCE TYPE		LINK
Datasheets		BZ-2R-D5
Datasheets		BZ,BA,BM,6AS,W,Y Series
Datasheets		BZ, BA, BM, BE Series Part Number Guide

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant

This product is no longer manufactured.
