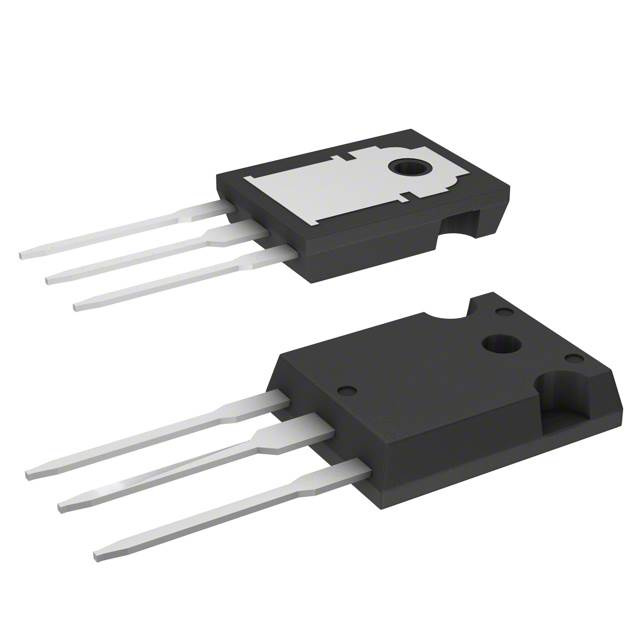

BYC60W-1200PQ

Part Number
BYC60W-1200PQ
Manufacturer WeEn Semiconductors Co., Ltd
Other Part Numbers
1740-BYC60W-1200PQ-ND
934072046127
1740-BYC60W-1200PQ
Description BYC60W-1200P/TO247-2L/STANDARD M
Detailed Description Diode 1200 V 60A Through Hole TO-247-2
Manufacturer Standard Lead Time 20 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer WeEn Semiconductors Co., Ltd
Series
Packaging
Bulk
Part Status Active
Package / Case TO-247-2
Mounting Type Through Hole
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 96 ns
Technology Standard
Current - Average Rectified (Io) 60A
Supplier Device Package TO-247-2
Operating Temperature - Junction 175°C
Voltage - DC Reverse (Vr) (Max) 1200 V
Voltage - Forward (Vf) (Max) @ If 3.3 V @ 60 A
Current - Reverse Leakage @ Vr 250 µA @ 1200 V

Documents & Media

RESOURCE TYPE LINK
Datasheets BYC60W-1200PQ
Datasheets Second Assembly Source 13/Feb/2023

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0080
