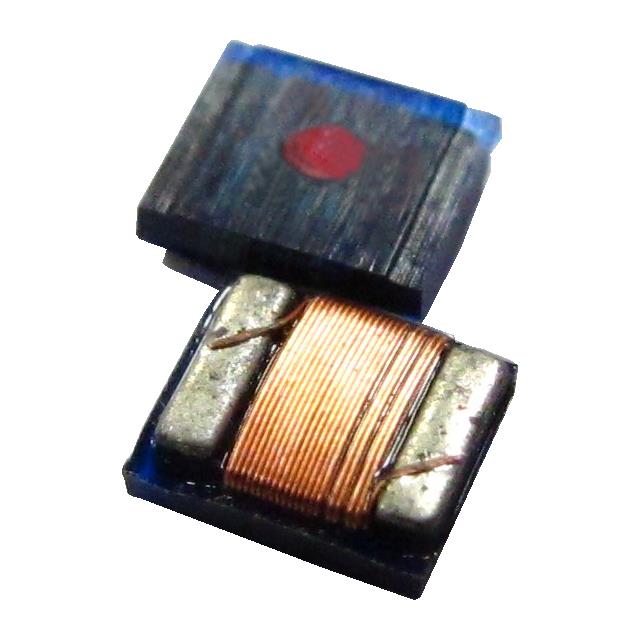

BWLT00241810R82J00

Part Number
BWLT00241810R82J00
Manufacturer Pulse Larsen Antenna
Other Part Numbers
553-BWLT00241810R82J00TR-ND
553-BWLT00241810R82J00TR
Description INDUCTOR RF
Detailed Description 820 nH Unshielded Drum Core, Wirewound Inductor 850mOhm Max Nonstandard
Manufacturer Standard Lead Time 13 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Pulse Larsen Antenna
Series
BWLT
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±5%
Package / Case Nonstandard
Size / Dimension 0.094" L x 0.073" W (2.40mm x 1.85mm)
Mounting Type Surface Mount
Shielding Unshielded
Type Drum Core, Wirewound
Operating Temperature -25°C ~ 105°C
DC Resistance (DCR) 850mOhm Max
Current - Saturation (Isat) 730mA
Material - Core Ferrite
Inductance Frequency - Test 25.2 MHz
Height - Seated (Max) 0.041" (1.05mm)
Inductance 820 nH

Documents & Media

RESOURCE TYPE LINK
Datasheets BWLT00241810R82J00
Datasheets Pulse Larson REACH

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
