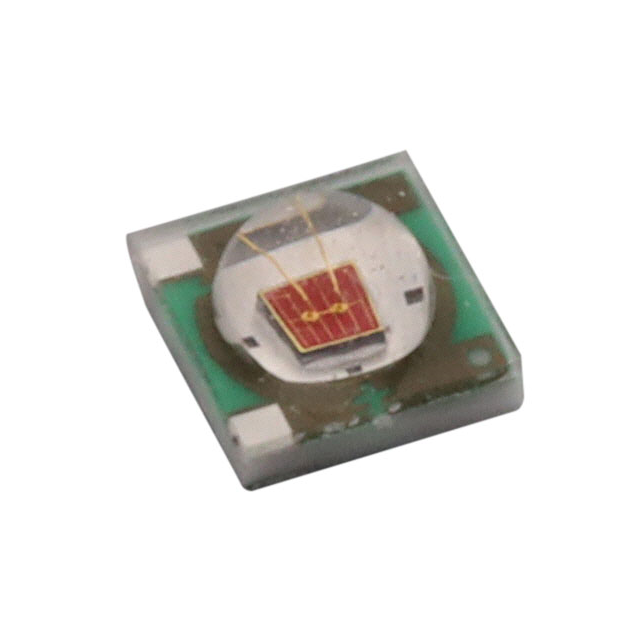

BWL-35C1R15

BWL-35C1R15

Part Number	BWL-35C1R15
Manufacturer	American Bright
Other Part Numbers	BWL-35C1R15TR-ND BWL-35C1R15CT-ND BWL-35C1R15DKR-ND BWL-35C1R15TR BWL-35C1R15DKR BWL-35C1R15CT
Description	LED HIGH POWER RED 623NM
Detailed Description	LED Lighting Color - Red 623nm (615nm ~ 630nm) 1414 (3535 Metric)
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Product Attributes

Category		Optoelectronics LED Color Lighting
Manufacturer		American Bright
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		1414 (3535 Metric)
Color		Red
Wavelength		623nm (615nm ~ 630nm)
Size / Dimension		0.138" L x 0.138" W (3.50mm x 3.50mm)
Mounting Type		Surface Mount
Voltage - Forward (Vf) (Typ)		2.2V
Current - Test		350mA
Viewing Angle		120°
Current - Max		350mA
Lumens/Watt @ Current - Test		65 lm/W
Height - Seated (Max)		0.081" (2.05mm)
Temperature - Test		25°C
Luminous Flux @ Current/Temperature		50lm (Typ)

Documents & Media

RESOURCE TYPE		LINK
Datasheets		BWL-35C1R15
Datasheets		RoHS Test Report HiPower
Datasheets		HiPower REACH

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.41.0000
Moisture Sensitivity Level (MSL)		5A (24 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 1613

Can ship immediately.
