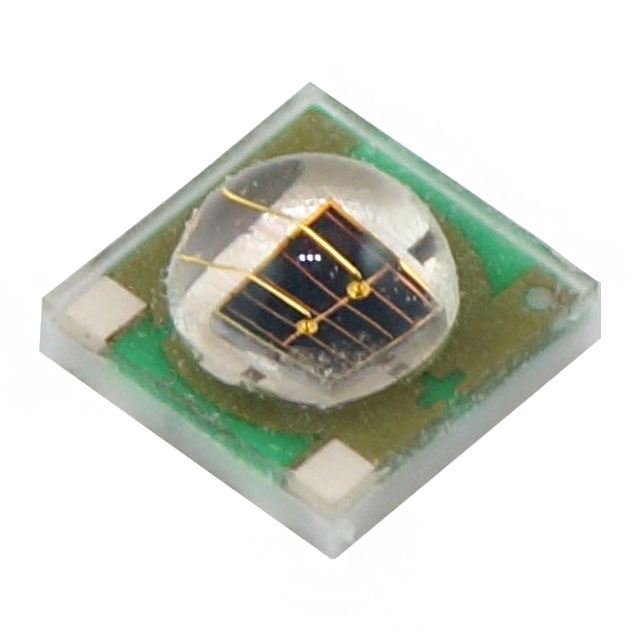

BWIR-35C2O48

Part Number
BWIR-35C2O48
Manufacturer American Bright
Other Part Numbers
BWIR-35C2O48TR-ND
BWIR-35C2O48CT-ND
BWIR-35C2O48DKR-ND
BWIR-35C2O48DKR
BWIR-35C2O48CT
BWIR-35C2O48TR
Description 3535 850NM IR
Detailed Description Infrared (IR) Emitter 850nm 1.7V 1A 260mW/sr @ 1A (Typ) 120° 1414 (3535 Metric)
Manufacturer Standard Lead Time 12 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer American Bright
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Package / Case 1414 (3535 Metric)
Wavelength 850nm
Mounting Type Surface Mount
Type Infrared (IR)
Orientation Top View
Operating Temperature -40°C ~ 85°C
Voltage - Forward (Vf) (Typ) 1.7V
Viewing Angle 120°
Current - DC Forward (If) (Max) 1A
Radiant Intensity (Ie) Min @ If 260mW/sr @ 1A (Typ)

Documents & Media

RESOURCE TYPE LINK
Datasheets BWIR-35C2O48
Datasheets RoHS Test Report Infrared
Datasheets Infrared REACH

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.41.0000
Moisture Sensitivity Level (MSL) 5A (24 Hours)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 9016

Can ship immediately.
