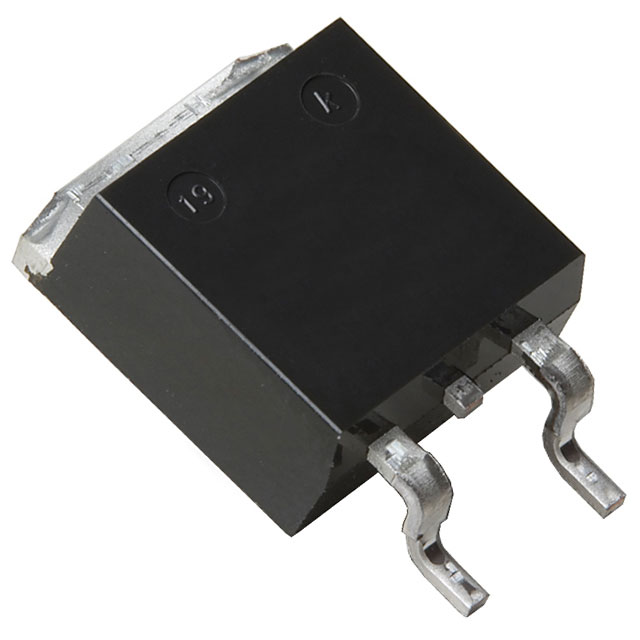

BTA225B-800B,118

Part Number
BTA225B-800B,118
Manufacturer WeEn Semiconductors Co., Ltd
Other Part Numbers
1740-1123-2-ND
1740-1123-1-ND
1740-1123-6-ND
568-1780-2-ND
568-1780-6
568-1780-1-ND
934048210118
BTA225B-800B /T3
568-1780-1
568-1780-2
BTA225B-800B
1740-1123-6
568-1780-6-ND
1740-1123-1
1740-1123-2
Description TRIAC 800V 25A D2PAK
Detailed Description TRIAC Standard 800 V 25 A Surface Mount D2PAK
Manufacturer Standard Lead Time 12 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer WeEn Semiconductors Co., Ltd
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Package / Case TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
Mounting Type Surface Mount
Triac Type Standard
Configuration Single
Operating Temperature 125°C (TJ)
Current - Hold (Ih) (Max) 60 mA
Current - Gate Trigger (Igt) (Max) 50 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 190A, 209A
Voltage - Gate Trigger (Vgt) (Max) 1.5 V
Supplier Device Package D2PAK
Current - On State (It (RMS)) (Max) 25 A
Voltage - Off State 800 V

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.30.0080
Moisture Sensitivity Level (MSL) 1 (Unlimited)
RoHS Status RoHS Compliant

In Stock: 14230

Can ship immediately.
