BQ296114DSGR

BQ296114DSGR

Part Number	BQ296114DSGR
Manufacturer	Texas Instruments
Other Part Numbers	296-BQ296114DSGRTR-ND 296-50970-1-ND 296-50970-6-ND 296-50970-2-ND 296-BQ296114DSGRTR 2156-BQ296114DSGR 296-50970-1 296-BQ296114DSGRCT 296-BQ296114DSGRDKR 296-BQ296114DSGRCT-ND 296-50970-2 TEXTISBQ296114DSGR 296-BQ296114DSGRDKR-ND BQ296114DSGR-ND 296-50970-6
Description	IC BATT PROT LI-ION 2-4CEL 8WSON
Detailed Description	Battery Battery Protection IC Lithium Ion 8-WSON (2x2)
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Power Management (PMIC) Battery Management
Manufacturer		Texas Instruments
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

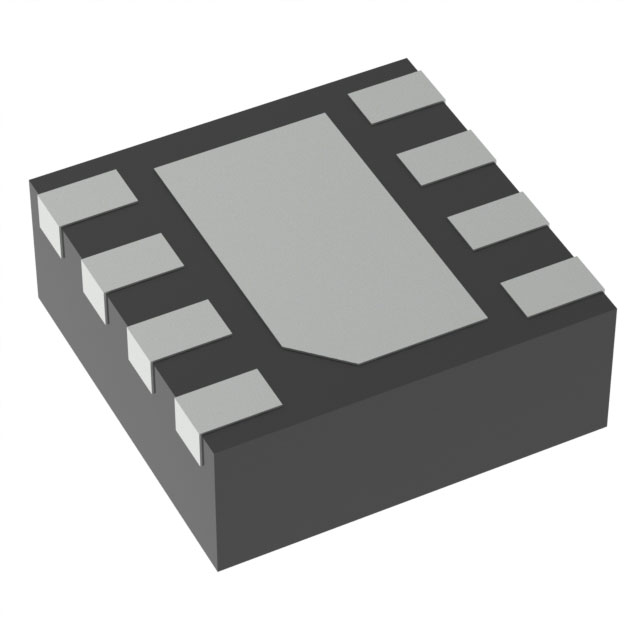

Package / Case		8-WFDFN Exposed Pad
Number of Cells		2 ~ 4
Mounting Type		Surface Mount
Function		Battery Protection
Operating Temperature		-40°C ~ 110°C (TA)
Battery Chemistry		Lithium Ion
Supplier Device Package		8-WSON (2x2)
Fault Protection		Over Voltage

Documents & Media

RESOURCE TYPE		LINK
Datasheets		Mult Dev Material Chg 29/Mar/2018

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		2 (1 Year)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
