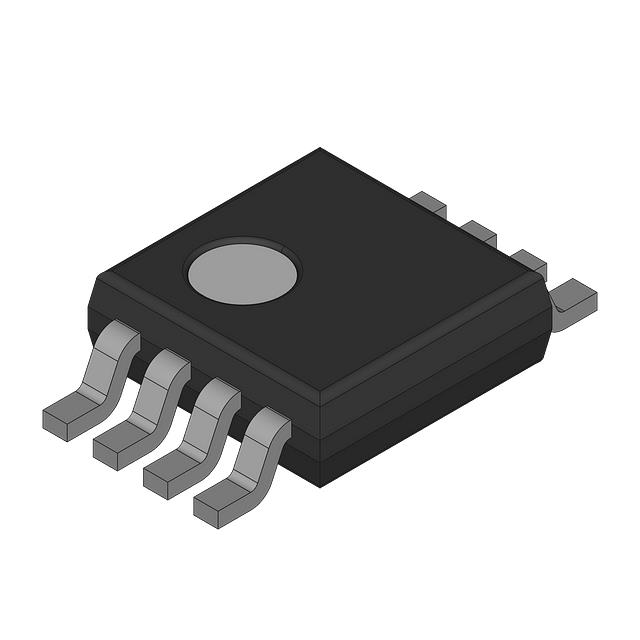

BQ24201DGN

Part Number
BQ24201DGN
Manufacturer Benchmarq
Other Part Numbers
2156-BQ24201DGN-ND
2156-BQ24201DGN
TEXTISBQ24201DGN
Description IC BATT CHG LI-ION 1CELL 8MSOP
Detailed Description Charger IC Lithium Ion/Polymer 8-MSOP-PowerPad

Product Attributes

Category
Manufacturer Benchmarq
Series
Packaging
Bulk
Part Status Active
Package / Case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Number of Cells 1
Mounting Type Surface Mount
Operating Temperature -40°C ~ 125°C (TJ)
Battery Chemistry Lithium Ion/Polymer
Supplier Device Package 8-MSOP-PowerPad
Charge Current - Max 500mA
Programmable Features Current, Timer
Fault Protection Over Temperature, Short Circuit
Voltage - Supply (Max) 13.5V
Battery Pack Voltage 4.1V
Current - Charging Constant

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
