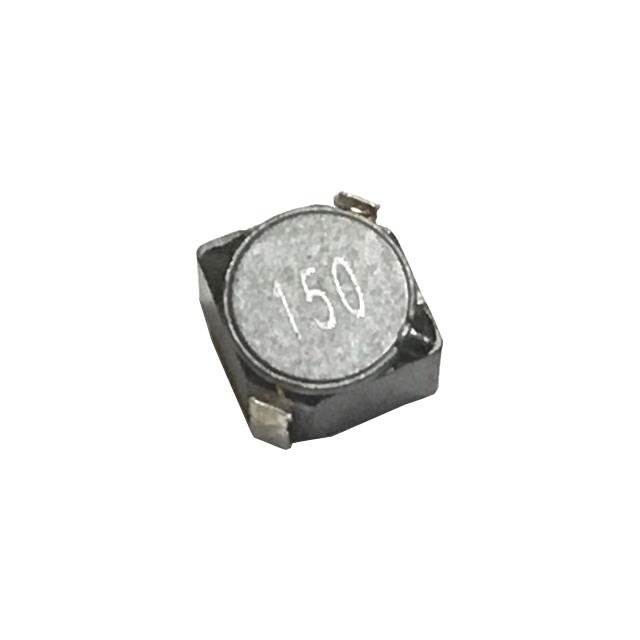

BPDR000505208R2T00

Part Number
BPDR000505208R2T00
Manufacturer Pulse Larsen Antenna
Other Part Numbers
553-BPDR000505208R2T00TR-ND
553-BPDR000505208R2T00TR
Description INDUCTOR POWER
Detailed Description 8.2 µH Shielded Inductor 680 mA 245mOhm Max Nonstandard
Manufacturer Standard Lead Time 13 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer Pulse Larsen Antenna
Series
BPDx
Packaging
Tape & Reel (TR)
Part Status Active
Tolerance ±30%
Package / Case Nonstandard
Size / Dimension 0.185" L x 0.185" W (4.70mm x 4.70mm)
Mounting Type Surface Mount
Shielding Shielded
Operating Temperature -40°C ~ 125°C
DC Resistance (DCR) 245mOhm Max
Current - Saturation (Isat) 680mA
Material - Core Ferrite
Inductance Frequency - Test 100 kHz
Height - Seated (Max) 0.079" (2.00mm)
Inductance 8.2 µH
Current Rating (Amps) 680 mA

Documents & Media

RESOURCE TYPE LINK
Datasheets BPDR000505208R2T00
Datasheets Pulse Larson REACH

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.50.8000
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant
