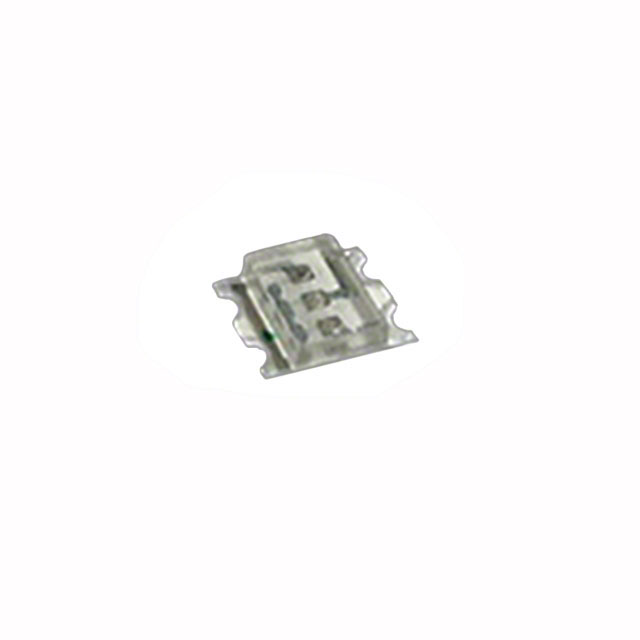

BL-H1010RGB-V3

BL-H1010RGB-V3

Part Number	BL-H1010RGB-V3
Manufacturer	American Bright
Other Part Numbers	2007-BL-H1010RGB-V3TR-ND 2007-BL-H1010RGB-V3CT-ND 2007-BL-H1010RGB-V3DKR-ND 2007-BL-H1010RGB-V3TR 2007-BL-H1010RGB-V3DKR 2007-BL-H1010RGB-V3CT
Description	LED RGB CLEAR 0404 SMD
Detailed Description	Red, Green, Blue (RGB) 625nm Red, 528nm Green, 469nm Blue LED Indication - Discrete 1.9V Red, 2.95V Green, 2.95V Blue 0404 (1010 Metric)
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Product Attributes

Category		Optoelectronics LED Indication - Discrete
Manufacturer		American Bright
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Package / Case		0404 (1010 Metric)
Color		Red, Green, Blue (RGB)
Size / Dimension		1.00mm L x 1.00mm W
Mounting Type		Surface Mount
Millicandela Rating		84mcd Red, 190mcd Green, 24.1mcd Blue
Configuration		Common Anode
Voltage - Forward (Vf) (Typ)		1.9V Red, 2.95V Green, 2.95V Blue
Current - Test		10mA Red, 5mA Green, 5mA Blue
Viewing Angle		120°
Height (Max)		0.85mm
Wavelength - Peak		632nm Red, 520nm Green, 470nm Blue
Wavelength - Dominant		625nm Red, 528nm Green, 469nm Blue
Supplier Device Package		0404
Lens Style		Rectangle with Flat Top

Documents & Media

RESOURCE TYPE		LINK
Datasheets		BL-H1010RGB-V3
Datasheets		RoHS Test Report Chip
Datasheets		Chip REACH

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.41.0000
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 21772

Can ship immediately.
