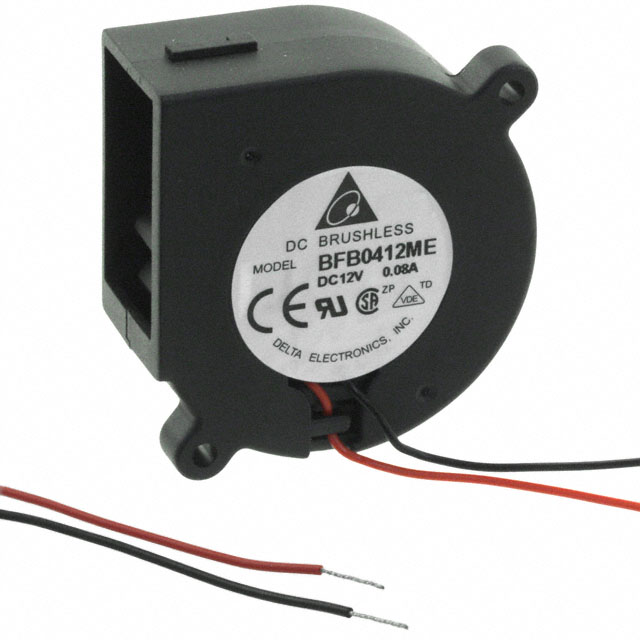

BFB0412ME

Part Number
BFB0412ME
Manufacturer Delta Electronics / Fans
Other Part Numbers
603-1364-ND
603-1364
Description FAN BLOWER 42X18.5MM 12VDC WIRE
Detailed Description Fan Blower 12VDC Rectangular/Rounded - 42mm L x 44.5mm H Ball 2.1 CFM (0.059m³/min) 2 Wire Leads
Datasheet Datasheet

Product Attributes

Category
Manufacturer Delta Electronics / Fans
Series
BFB
Packaging
Bulk
Part Status Obsolete
Features Locked Rotor Protection
Voltage - Rated 12VDC
Size / Dimension Rectangular/Rounded - 42mm L x 44.5mm H
Bearing Type Ball
RPM 4500 RPM
Air Flow 2.1 CFM (0.059m³/min)
Width 18.50mm
Weight 0.049 lb (22.23 g)
Operating Temperature 14 ~ 158°F (-10 ~ 70°C)
Termination 2 Wire Leads
Approval Agency CE, CSA, UL, VDE
Fan Type Blower
Noise 30.0dB(A)
Static Pressure 0.233 in H2O (58.0 Pa)
Power (Watts) 600 mW

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8414.59.6560
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Obsolete

This product is no longer manufactured.
