BD9851EFV-E2

Part Number
BD9851EFV-E2
Manufacturer ROHM Semiconductor
Other Part Numbers
BD9851EFV-E2TR-ND
BD9851EFV-E2CT-ND
BD9851EFV-E2DKR-ND
BD9851EFV-ZAE2
BD9851EFV-E2DKR
BD9851EFV-E2CT
BD9851EFV-E2TR
BD9851EFVE2
Description IC REG CTRLR BUCK/BST 20HTSSOP-B
Detailed Description Buck, Boost Regulator Positive or Negative Output Step-Up, Step-Down DC-DC Controller IC 20-HTSSOP-B
Manufacturer Standard Lead Time 14 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer ROHM Semiconductor
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active

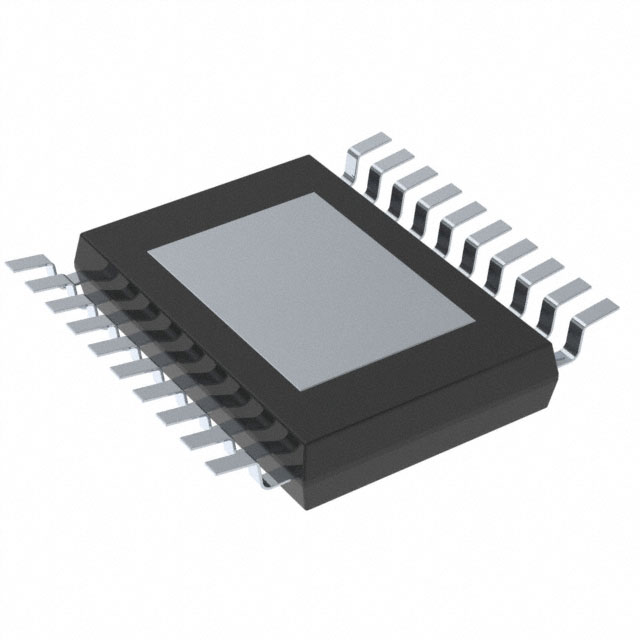

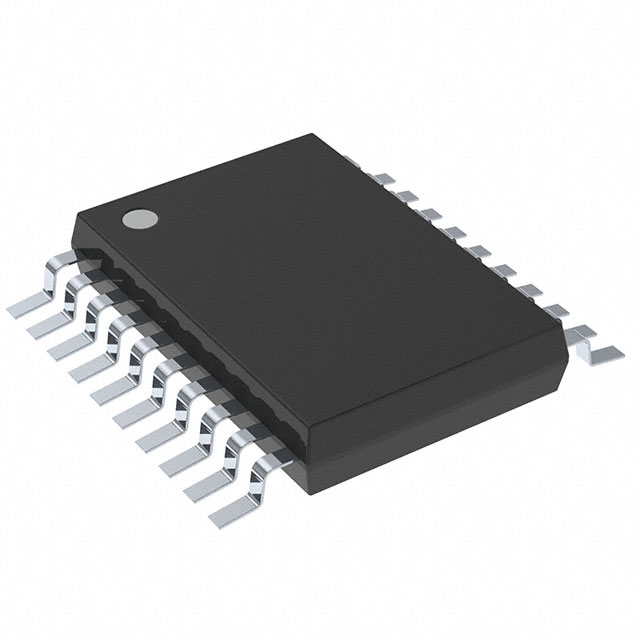

Package / Case 20-VSSOP (0.173", 4.40mm Width) Exposed Pad
Output Type Transistor Driver
Mounting Type Surface Mount
Function Step-Up, Step-Down
Operating Temperature -40°C ~ 85°C (TA)
Output Configuration Positive or Negative
Frequency - Switching 10kHz ~ 3MHz
Topology Buck, Boost
Voltage - Supply (Vcc/Vdd) 4V ~ 18V
Supplier Device Package 20-HTSSOP-B
Synchronous Rectifier No
Control Features Enable, Frequency Control, Soft Start
Output Phases 1
Clock Sync No
Number of Outputs 2

Documents & Media

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 2431

Can ship immediately.
