Part Number |
BD9611MUV-E2
|
---|---|
Manufacturer | ROHM Semiconductor |
Other Part Numbers |
BD9611MUV-E2TR-ND
BD9611MUV-E2CT-ND
BD9611MUV-E2DKR-ND
BD9611MUIV-E2DKR-ND
BD9611MUIV-E2CT-ND
BD9611MUV-E2DKR
BD9611MUIV-E2CT
BD9611MUV-E2CT
BD9611MUIV-E2DKR
BD9611MUV-E2TR
|
Description | IC REG CTRLR BUCK 20VQFN |
Detailed Description | Buck Regulator Positive Output Step-Down DC-DC Controller IC VQFN020V4040 |
Manufacturer Standard Lead Time | 16 weeks |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | ROHM Semiconductor | |
Series | ||
Packaging |
Tape & Reel (TR)
Cut Tape (CT)
|
|
Part Status | Active | |

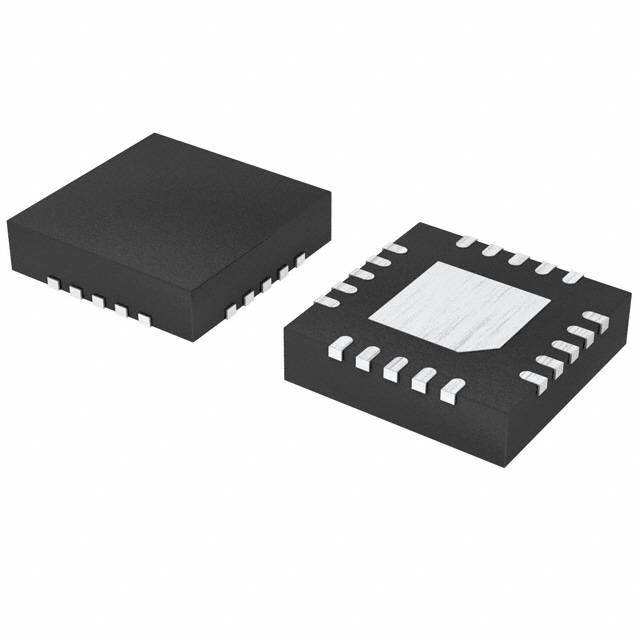

Package / Case | 20-VFQFN Exposed Pad | |
Output Type | Transistor Driver | |
Mounting Type | Surface Mount | |
Function | Step-Down | |
Operating Temperature | -40°C ~ 105°C (TA) | |
Output Configuration | Positive | |
Frequency - Switching | 50kHz ~ 500kHz | |
Topology | Buck | |
Voltage - Supply (Vcc/Vdd) | 10V ~ 56V | |
Supplier Device Package | VQFN020V4040 | |
Synchronous Rectifier | Yes | |
Control Features | Current Limit, Enable, Frequency Control, Soft Start | |
Output Phases | 1 | |
Clock Sync | Yes | |
Number of Outputs | 1 |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | BD9611MUV-E2 Flammability | |
Datasheets | BD9611MUV-E2 Whisker Info |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8542.39.0001 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
