BD9528AMUV-E2

Part Number
BD9528AMUV-E2
Manufacturer ROHM Semiconductor
Other Part Numbers
BD9528AMUV-E2TR-ND
BD9528AMUV-E2CT-ND
BD9528AMUV-E2DKR-ND
BD9528AMUV-BZE2
BD9528AMUV-E2TR
BD9528AMUV-E2DKR
BD9528AMUV-E2CT
Description IC REG QD BUCK/LNR VQFN032V5050
Detailed Description PMIC - Voltage Regulators - Linear Switching 4 Output Step-Down (Buck) Synchronous (2), Linear (LDO) (2) 200kHz ~ 500kHz VQFN032V5050
Datasheet Datasheet

Product Attributes

Category
Manufacturer ROHM Semiconductor
Series
H³®
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Not For New Designs

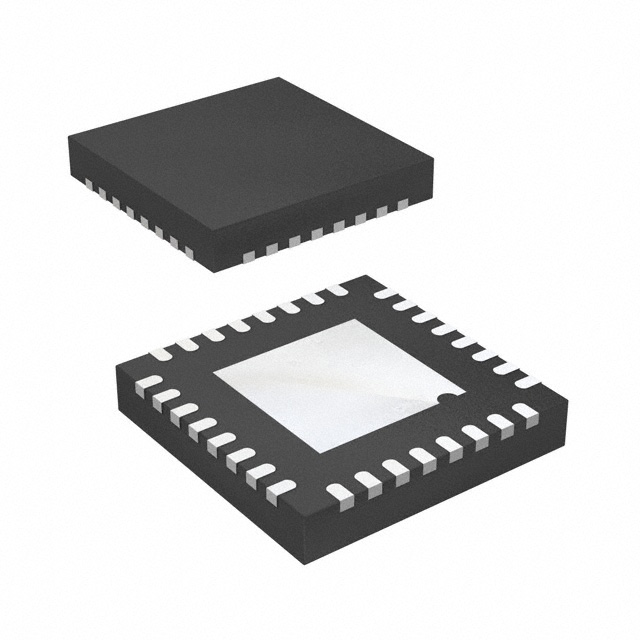

Package / Case 32-VFQFN Exposed Pad
Mounting Type Surface Mount
Operating Temperature -20°C ~ 100°C
Voltage - Supply 5.5V ~ 28V
Frequency - Switching 200kHz ~ 500kHz
Topology Step-Down (Buck) Synchronous (2), Linear (LDO) (2)
Supplier Device Package VQFN032V5050
Voltage/Current - Output 1 Adj to 5.5V
Voltage/Current - Output 2 Adj to 5.5V
Voltage/Current - Output 3 3.3V, 100mA
w/LED Driver No
w/Supervisor No
w/Sequencer No
Number of Outputs 4

Documents & Media

RESOURCE TYPE LINK
Datasheets BD9528AMUV-E2
Datasheets BD9528AMUV-E2 Flammability
Datasheets BD9528AMUV-E2 Whisker Info

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8542.39.0001
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

Available To Order

Not recommended for new design, minimums may apply.
