BD9036EFV-CE2 _ DC DC Switching Controllers_Power Management (PMIC)_Integrated Circuits (ICs)

Part Number	BD9036EFV-CE2
Manufacturer	ROHM Semiconductor
Other Part Numbers	846-BD9036EFV-CE2TR-ND 846-BD9036EFV-CE2CT-ND 846-BD9036EFV-CE2DKR-ND 846-BD9036EFV-CE2CT 846-BD9036EFV-CE2DKR 846-BD9036EFV-CE2TR
Description	AUTOMATICALLY CONTROLLED BUCK-BO
Detailed Description	Buck-Boost Regulator Positive Output Step-Up/Step-Down DC-DC Controller IC 24-HTSSOP-B
Manufacturer Standard Lead Time	17 weeks

Category		Integrated Circuits (ICs) Power Management (PMIC) DC DC Switching Controllers
Manufacturer		ROHM Semiconductor
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active

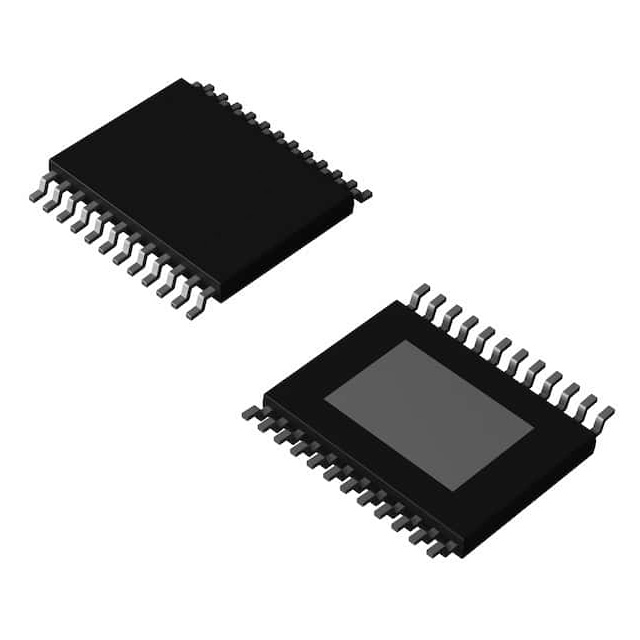

Package / Case		24-VSSOP (0.220", 5.60mm Width) Exposed Pad
Output Type		Transistor Driver
Mounting Type		Surface Mount
Function		Step-Up/Step-Down
Operating Temperature		-40°C ~ 125°C (TA)
Output Configuration		Positive
Frequency - Switching		100kHz ~ 600kHz
Topology		Buck-Boost
Voltage - Supply (Vcc/Vdd)		3.8V ~ 30V
Supplier Device Package		24-HTSSOP-B
Synchronous Rectifier		Yes
Control Features		Frequency Control, Power Good, Soft Start
Output Phases		1
Duty Cycle (Max)		92%
Clock Sync		Yes
Grade		Automotive
Number of Outputs		1
Qualification		AEC-Q100

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)

Can ship immediately.
