BD39001EKV-CE2

BD39001EKV-CE2

Part Number	BD39001EKV-CE2
Manufacturer	ROHM Semiconductor
Other Part Numbers	BD39001EKV-CE2TR-ND BD39001EKV-CE2CT-ND BD39001EKV-CE2DKR-ND BD39001EKV-CE2CT BD39001EKV-CE2TR BD39001EKV-CE2DKR
Description	IC REG TRPL BUCK/BST/LNR 48HTQFP
Detailed Description	PMIC - Voltage Regulators - Linear Switching 3 Output Step-Down (Buck) (1) or Step-Down/Step-Up (Buck/Boost) (1), Linear (LDO) (1) 200kHz ~ 550kHz 48-HTQFP (7x7)
Datasheet	Datasheet

Product Attributes

Category		Integrated Circuits (ICs) Power Management (PMIC) Voltage Regulators - Linear + Switching
Manufacturer		ROHM Semiconductor
Series
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Not For New Designs

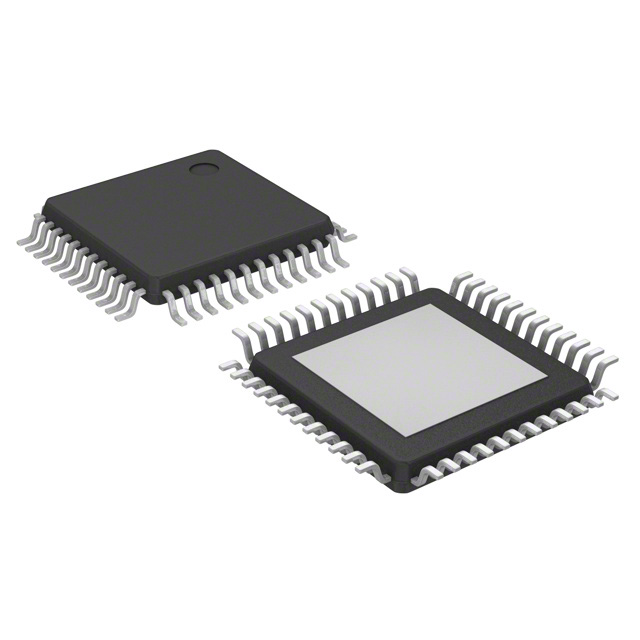

Package / Case		48-VFQFP Exposed Pad
Mounting Type		Surface Mount
Operating Temperature		-40°C ~ 125°C
Voltage - Supply		4V ~ 30V
Frequency - Switching		200kHz ~ 550kHz
Topology		Step-Down (Buck) (1) or Step-Down/Step-Up (Buck/Boost) (1), Linear (LDO) (1)
Supplier Device Package		48-HTQFP (7x7)
Voltage/Current - Output 1		Adj to 0.8V
Voltage/Current - Output 2		3.3V, 900mA
Voltage/Current - Output 3		5V, 600mA
w/LED Driver		No
w/Supervisor		No
w/Sequencer		Yes
Number of Outputs		3

Documents & Media

RESOURCE TYPE		LINK
Datasheets		BD39001EKV-CE2
Datasheets		BD39001EKV-CE2 Flammability
Datasheets		AEC-Q101 Automotive Requirements
Datasheets		BD39001EKV-CE2 Whisker Info

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8542.39.0001
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Available To Order

Not recommended for new design, minimums may apply.
