BB-SMI18-12-V-ST _ AC DC Desktop, Wall Power Adapters_Power Supplies

Part Number	BB-SMI18-12-V-ST
Manufacturer	Advantech
Other Part Numbers	1165-1336-ND 1165-1336 SMI18-12-V-ST

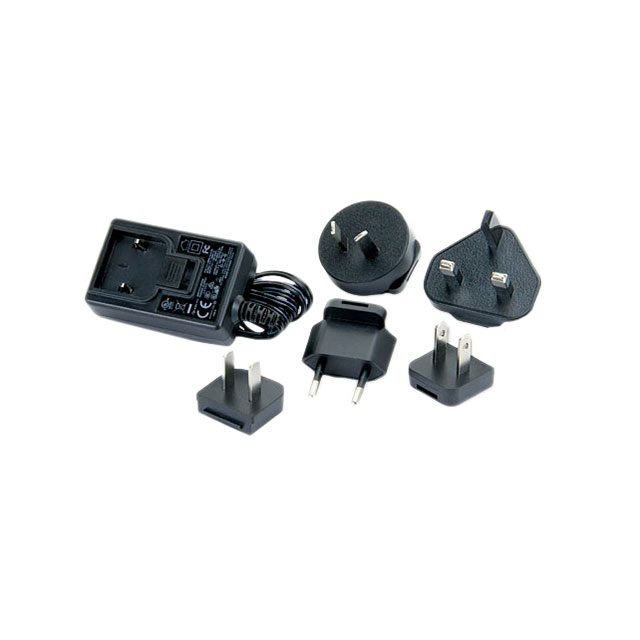

Description	AC/DC WALL MOUNT ADAPTER 12V 19W
Detailed Description	12V 19 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Included) Input
Datasheet	Datasheet

Category		Power Supplies - External/Internal (Off-Board) AC DC Desktop, Wall Power Adapters
Manufacturer		Advantech
Series		SMI18 (18W)
Packaging		Box
Part Status		Obsolete
Size / Dimension		2.95" L x 1.38" W x 2.58" H (75.0mm x 35.0mm x 65.6mm)
Voltage - Output		12V
Output Connector		Stripped, Tinned Wire Leads
Voltage - Input		90 ~ 264 VAC
Cord Length		59" (1.50m)
Operating Temperature		0°C ~ 40°C
Applications		ITE (Commercial)
Input Type		Multi-Blade (Included)
Approval Agency		CB Scheme, CCC, CSA, EN, IEC, PSE, RCM, UL
Form		Wall Mount (Class II)
Efficiency		Level VI, CoC Tier 2
Current - Output (Max)		1.6A
Input Connector		Multi-Blade
Region Utilized		International
No Load Power Consumption		100mW (Max)
Power (Watts)		19 W
Standard Number		C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1

RESOURCE TYPE		LINK
Datasheets		BB-SMI18-12-V-ST

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.40.7001
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		ROHS3 Compliant

This product is no longer manufactured.
