BAT43

Part Number
BAT43
Manufacturer STMicroelectronics
Other Part Numbers
497-2492-2-ND
497-2492-1-ND
497-2492-1
497-2492-6INACTIVE
497-2492-2
497-2492-6
497-2492-2-NDR
497-2492-1-NDR
497-2492-6-ND

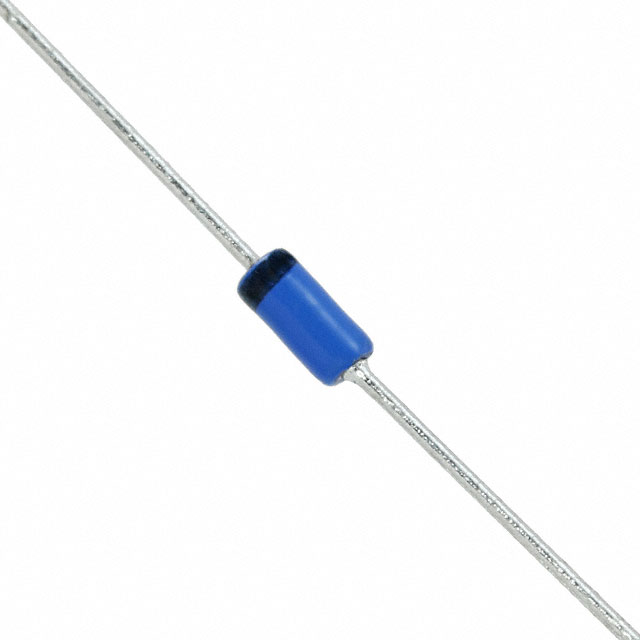

Description DIODE SCHOTTKY 30V 200MA DO35
Detailed Description Diode 30 V 200mA Through Hole DO-35
Manufacturer Standard Lead Time 25 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer STMicroelectronics
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Package / Case DO-204AH, DO-35, Axial
Mounting Type Through Hole
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 5 ns
Technology Schottky
Capacitance @ Vr, F 7pF @ 1V, 1MHz
Current - Average Rectified (Io) 200mA
Supplier Device Package DO-35
Operating Temperature - Junction -65°C ~ 125°C
Voltage - DC Reverse (Vr) (Max) 30 V
Voltage - Forward (Vf) (Max) @ If 1 V @ 200 mA
Current - Reverse Leakage @ Vr 500 nA @ 25 V

Documents & Media

RESOURCE TYPE LINK
Datasheets BAT43

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0070
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 4010

Can ship immediately.
