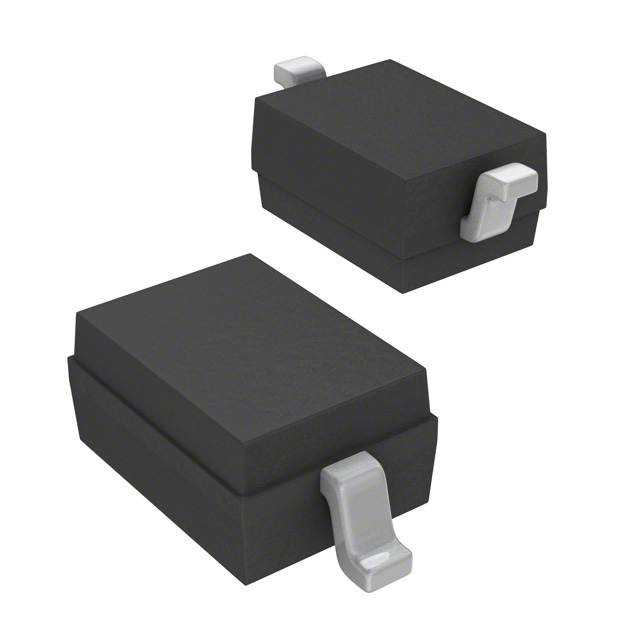

BAS1603WE6327HTSA1

Part Number
BAS1603WE6327HTSA1
Manufacturer IR (Infineon Technologies)
Other Part Numbers
BAS1603WE6327HTSA1TR-ND
BAS1603WE6327HTSA1CT-ND
BAS1603WE6327HTSA1DKR-ND
BAS1603WE6327HTSA1DKR
BAS 16-03W E6327TR-ND
BAS1603WE6327XT
BAS1603WE6327HTSA1CT
BAS 16-03W E6327
BAS 16-03W E6327CT-ND
BAS1603WE6327
BAS1603WE6327BTSA1
BAS 16-03W E6327DKR
BAS 16-03W E6327DKR-ND
BAS1603WE6327HTSA1TR
SP000010213
BAS 16-03W E6327CT
BAS 16-03W E6327-ND
Description DIODE GP 80V 250MA SOD323-2
Detailed Description Diode 80 V 250mA Surface Mount PG-SOD323-3D
Datasheet Datasheet

Product Attributes

Category
Manufacturer IR (Infineon Technologies)
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT)
Part Status Last Time Buy
Package / Case SC-76, SOD-323
Mounting Type Surface Mount
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 4 ns
Technology Standard
Capacitance @ Vr, F 2pF @ 0V, 1MHz
Current - Average Rectified (Io) 250mA
Supplier Device Package PG-SOD323-3D
Operating Temperature - Junction 150°C (Max)
Voltage - DC Reverse (Vr) (Max) 80 V
Voltage - Forward (Vf) (Max) @ If 1.25 V @ 150 mA
Current - Reverse Leakage @ Vr 1 µA @ 75 V

Documents & Media

RESOURCE TYPE LINK
Datasheets BAS1603WE6327HTSA1
Datasheets Part Number Guide
Datasheets Reel Cover Tape Chg 16/Feb/2016

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.10.0070
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 12229

Can ship immediately.
