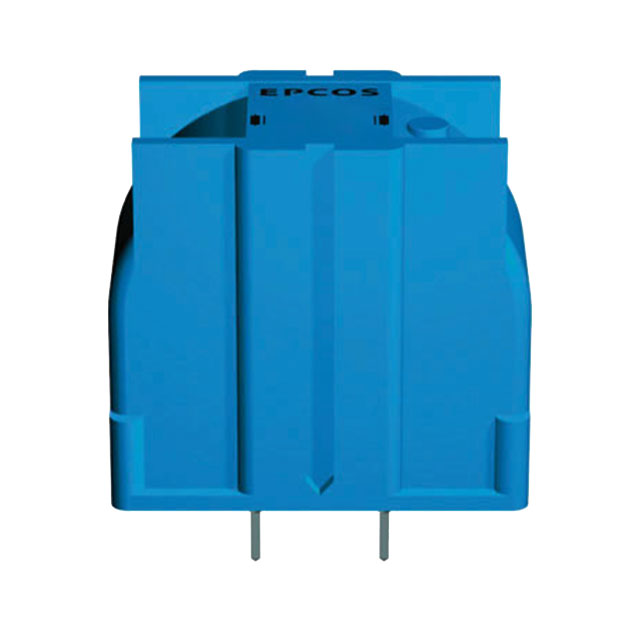

B82725J2402N020

B82725J2402N020

Part Number	B82725J2402N020
Manufacturer	TDK EPCOS
Other Part Numbers	495-75968-ND Q2115211 B82725J2402N20-ND B82725J2402N 20 B82725J2402N20 495-75968 B82725J2402N020-ND
Description	CMC 6.8MH 4A 2LN TH
Detailed Description	6.8 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 4A DCR 75mOhm (Typ)
Manufacturer Standard Lead Time	9 weeks
Datasheet	Datasheet

Product Attributes

Category		Filters Common Mode Chokes
Manufacturer		TDK EPCOS
Series		B82725
Packaging		Tray
Part Status		Active
Package / Case		Vertical, 4 PC Pin
Filter Type		Power Line
Size / Dimension		1.591" L x 0.846" W (40.40mm x 21.50mm)
Mounting Type		Through Hole
Number of Lines		2
Operating Temperature		-40°C ~ 125°C
Approval Agency		ENEC, UR, VDE
Height (Max)		1.575" (40.00mm)
Voltage Rating - AC		250V
Current Rating (Max)		4A
DC Resistance (DCR) (Max)		75mOhm (Typ)
Inductance @ Frequency		6.8 mH @ 10 kHz

Documents & Media

RESOURCE TYPE		LINK
Datasheets		B82725J2402N020
Datasheets		TDK Electronics RoHS & REACH

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8548.00.0000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant

In Stock: 35

Can ship immediately.
